Gear Ratio (X:1) | 10 |
---|---|
Rated Output Torque (in-lbs) | 7081 |
Max Output Torque (in-lbs) | 12746 |
Backlash Maximum (arc-min) | 1 |
Maximum Input Speed (RPM) | 6000 |
Stages | 1 |
Efficiency (%) | 97 |
Torsional Rigidity (Nm/arcmin) | 75 |
L2 Length (mm) | 94 |
Weight (lbs) | 60.00 |

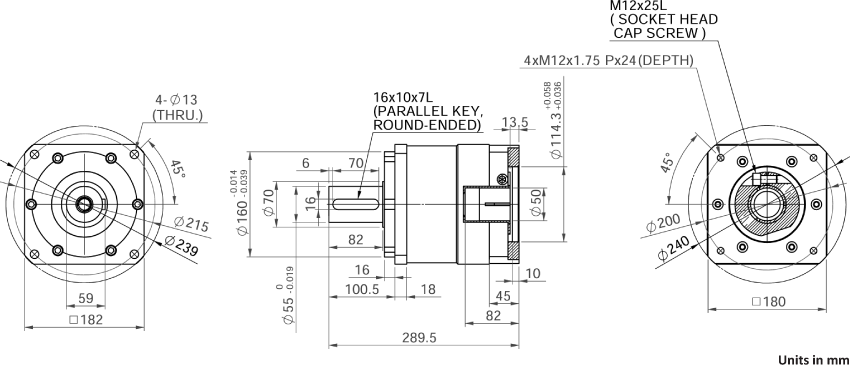

The GBPS-180x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-180x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 1 arcminute, 22 gear ratios for rated torque up to 9294 in-lbs (148,704oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
