GBPH-060x-NP
GBPH-060x-NP | Anaheim Automation, Inc.
Information
.png)
The GBPH-060x-NP Series is an In-Line Planetary Gearbox line that offers great prices without sacrificing precision and quality! The GBPH-060x-NP Series is designed for motion control applications requiring minimal backlash and stiffness. This series will match most NEMA 23 (60mm) servo, brushless, or stepping motors. Features include precision backlash as low as 9 arc-min, 19 gear ratios from 3 to 100 for rated torque up to 478 in-lbs (7,648 oz-in), (model dependent), a patented precision clamping system and lifetime lubrication. Please verify all dimensions when matching to a motor.
- Compatible with NEMA Size 23
- Backlash as Low as 9 arc-min
- Gear Ratios from 3 to 100
- Available in 1 and 2 Stage Models
- Rated Output Torque 389 to 478 in-lb
- Patented Precision Clamping System
- Operating Temperature of -15° to 90°C
| Item | Gear Ratio (X:1) | Rated Output Torque (in-lbs) | Max Output Torque (in-lbs) | Backlash Maximum (arc-min) | Rated Speed (RPM) | Stages | Efficiency (%) | Torsional Rigidity (Nm/arcmin) | L2 Length (mm) | Weight (lbs) | 1pc Price (USD) | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GBPH-0602-NP-100 | 100 | 407 | 1221 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | |
| GBPH-0602-NP-070 | 70 | 407 | 1221 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | Call Us Contact Us |
| GBPH-0602-NP-050 | 50 | 425 | 1247 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | |
| GBPH-0602-NP-049 | 49 | 425 | 1593 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | Call Us Contact Us |
| GBPH-0602-NP-040 | 40 | 478 | 1434 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | |
| GBPH-0602-NP-035 | 35 | 407 | 1221 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | Call Us Contact Us |
| GBPH-0602-NP-030 | 30 | 389 | 1062 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | |
| GBPH-0602-NP-028 | 28 | 407 | 1221 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | Call Us Contact Us |
| GBPH-0602-NP-025 | 25 | 478 | 1434 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | |
| GBPH-0602-NP-021 | 21 | 389 | 1168 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | Call Us Contact Us |
| GBPH-0602-NP-020 | 20 | 478 | 1434 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | Call Us Contact Us |
| GBPH-0602-NP-015 | 15 | 478 | 1434 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | Call Us Contact Us |
| GBPH-0602-NP-012 | 12 | 389 | 1168 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | Call Us Contact Us |
| GBPH-0602-NP-009 | 9 | 389 | 1168 | 14 | 5000 | 2 | 95 | 6.5 | 72 | 3.97 | $446.00 | Call Us Contact Us |
| GBPH-0601-NP-010 | 10 | 389 | 1168 | 9 | 5000 | 1 | 95 | 6.5 | 50 | 3.04 | $351.00 | |
| GBPH-0601-NP-007 | 7 | 407 | 1221 | 9 | 5000 | 1 | 95 | 6.5 | 50 | 3.04 | $351.00 | Call Us Contact Us |
| GBPH-0601-NP-005 | 5 | 425 | 1275 | 9 | 5000 | 1 | 95 | 6.5 | 50 | 3.04 | $351.00 | |
| GBPH-0601-NP-004 | 4 | 478 | 1434 | 9 | 5000 | 1 | 95 | 6.5 | 50 | 3.04 | $351.00 | |
| GBPH-0601-NP-003 | 3 | 389 | 1168 | 9 | 5000 | 1 | 95 | 6.5 | 50 | 3.04 | $351.00 |
Additional Information

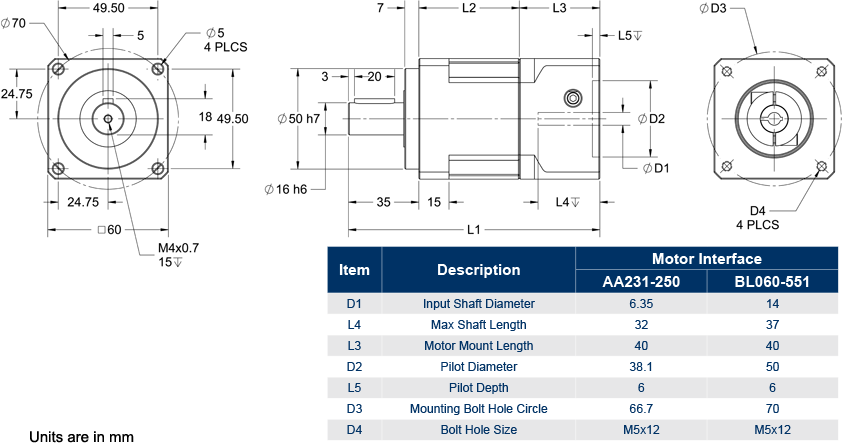

Motor Interface codes shown in this chart represent "suffixes" for complete gearbox part numbers. Choose a gearbox Item from the product table above, and you will be able to select the appropriate motor interface/suffix on the individual product page.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at sales@anaheimautomation.com
