GBPH-120x-NP

GBPH-120x-NP | Anaheim Automation, Inc.

Information

The GBPH-120x-NP Series is an In-Line Planetary Gearbox line that offers great prices without sacrificing precision and quality! The GBPH-120x-NP Series is designed for motion control applications requiring moderate backlash and stiffness. This series will match most NEMA 42 (120mm) servo or stepping motors. Features include standard backlash as low as 7 arc-min, 25 gear ratios from 3 to 343 for rated torque up to 2,708 in-lbs (43,328 oz-in), (model dependent), a patented precision clamping system and lifetime lubrication. Please verify all dimensions when matching to a motor.

  • Compatible with NEMA Size 42
  • Backlash as Low as 7 arc-min
  • Gear Ratios from 3 to 343
  • Available in 1, 2 and 3 Stage Models
  • Operating Temperature of -15° to 90°C
  • Rated Output Torque 2301 to 2708 in-lb
Item Gear Ratio (X:1) Rated Output Torque (in-lbs) Max Output Torque (in-lbs) Backlash Maximum (arc-min) Rated Speed (RPM) Stages Efficiency (%) Torsional Rigidity (Nm/arcmin) L2 Length (mm) Weight (lbs) 1pc Price (USD) Add to Cart
Sort by Name GBPH-1203-NP-343 Gear Ratio (X:1) 343 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 95 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1203-NP-245 Gear Ratio (X:1) 245 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 95 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1203-NP-175 Gear Ratio (X:1) 175 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 95 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1203-NP-140 Gear Ratio (X:1) 140 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 95 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1203-NP-125 Gear Ratio (X:1) 125 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 95 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1203-NP-100 Gear Ratio (X:1) 100 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 7568 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1203-NP-080 Gear Ratio (X:1) 80 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1203-NP-075 Gear Ratio (X:1) 75 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1203-NP-060 Gear Ratio (X:1) 60 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1203-NP-045 Gear Ratio (X:1) 45 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 3 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 105 Weight (lbs) 15.43 1pc Price (USD) $1,219.00 Call Us Contact Us
Sort by Name GBPH-1202-NP-049 Gear Ratio (X:1) 49 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 8629 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00 Call Us Contact Us
Sort by Name GBPH-1202-NP-035 Gear Ratio (X:1) 35 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 7568 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00 Call Us Contact Us
Sort by Name GBPH-1202-NP-028 Gear Ratio (X:1) 28 Rated Output Torque (in-lbs) 2708 Max Output Torque (in-lbs) 7568 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00 Call Us Contact Us
Sort by Name GBPH-1202-NP-025 Gear Ratio (X:1) 25 Rated Output Torque (in-lbs) 2708 Max Output Torque (in-lbs) 8125 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00 Call Us Contact Us
Sort by Name GBPH-1202-NP-021 Gear Ratio (X:1) 21 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 6904 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00 Call Us Contact Us
Sort by Name GBPH-1202-NP-020 Gear Ratio (X:1) 20 Rated Output Torque (in-lbs) 2708 Max Output Torque (in-lbs) 8125 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00
Sort by Name GBPH-1202-NP-016 Gear Ratio (X:1) 16 Rated Output Torque (in-lbs) 2708 Max Output Torque (in-lbs) 8125 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00 Call Us Contact Us
Sort by Name GBPH-1202-NP-015 Gear Ratio (X:1) 15 Rated Output Torque (in-lbs) 2708 Max Output Torque (in-lbs) 8125 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00 Call Us Contact Us
Sort by Name GBPH-1202-NP-012 Gear Ratio (X:1) 12 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 6904 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00 Call Us Contact Us
Sort by Name GBPH-1202-NP-009 Gear Ratio (X:1) 9 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 6904 Backlash Maximum (arc-min) 11 Rated Speed (RPM) 4000 Stages 2 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 77 Weight (lbs) 12.79 1pc Price (USD) $1,024.00
Sort by Name GBPH-1201-NP-010 Gear Ratio (X:1) 10 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 6904 Backlash Maximum (arc-min) 7 Rated Speed (RPM) 4000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 49 Weight (lbs) 10.14 1pc Price (USD) $836.00 Call Us Contact Us
Sort by Name GBPH-1201-NP-007 Gear Ratio (X:1) 7 Rated Output Torque (in-lbs) 2523 Max Output Torque (in-lbs) 7568 Backlash Maximum (arc-min) 7 Rated Speed (RPM) 4000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 49 Weight (lbs) 10.14 1pc Price (USD) $836.00 Call Us Contact Us
Sort by Name GBPH-1201-NP-005 Gear Ratio (X:1) 5 Rated Output Torque (in-lbs) 2584 Max Output Torque (in-lbs) 7753 Backlash Maximum (arc-min) 7 Rated Speed (RPM) 4000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 49 Weight (lbs) 10.14 1pc Price (USD) $836.00 Call Us Contact Us
Sort by Name GBPH-1201-NP-004 Gear Ratio (X:1) 4 Rated Output Torque (in-lbs) 2708 Max Output Torque (in-lbs) 8125 Backlash Maximum (arc-min) 7 Rated Speed (RPM) 4000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 49 Weight (lbs) 10.14 1pc Price (USD) $836.00 Call Us Contact Us
Sort by Name GBPH-1201-NP-003 Gear Ratio (X:1) 3 Rated Output Torque (in-lbs) 2301 Max Output Torque (in-lbs) 6904 Backlash Maximum (arc-min) 7 Rated Speed (RPM) 4000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 27 L2 Length (mm) 49 Weight (lbs) 10.14 1pc Price (USD) $836.00 Call Us Contact Us
Loading...

Additional Information

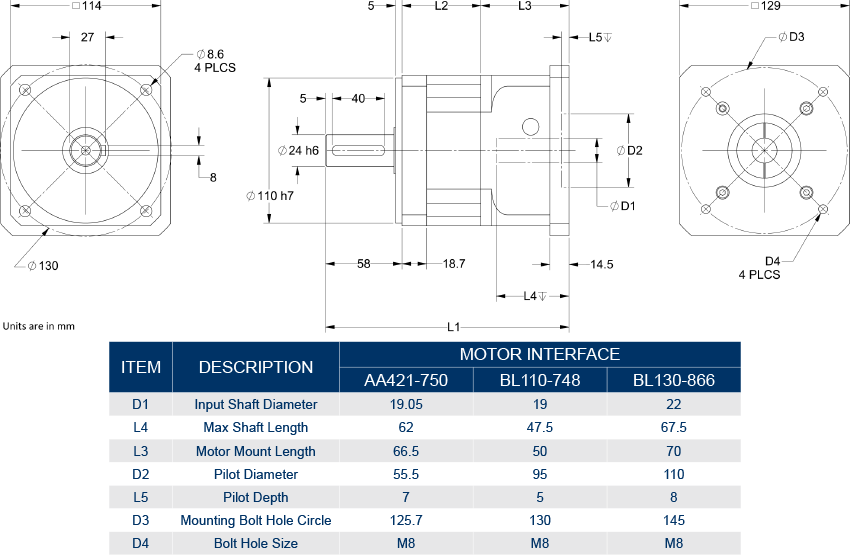

Motor Interface codes shown in this chart represent "suffixes" for complete gearbox part numbers. Choose a gearbox Item from the product table above, and you will be able to select the appropriate motor interface/suffix on the individual product page.

For custom input dimensions, or non-Anaheim Automation motors, fill out our  Gearbox Mounting Form  and submit it to our Sales Engineers at sales@anaheimautomation.com
