Information

The GBPH-180x-NP Series is an In-Line Planetary Gearbox line that offers great prices without sacrificing precision and quality! The GBPH-180x-NP Series is designed for motion control applications requiring moderate backlash and stiffness. This series will match most 170 to 200mm servo or stepping motors. Features include standard backlash as low as 5 arc-min, 20 gear ratios from 3 to 100 for rated torque up to 11,329 in-lbs (181,264 oz-in), (model dependent), and a patented precision clamping system and lifetime lubrication.

  • Backlash as Low as 5 arc-min
  • Gear Ratios from 3 to 100
  • Available in 1 and 2 Stage Models
  • Operating Temperature of -15° to 90°C
  • Rated Output Torque 8736 to 11329 in-lb
Item Gear Ratio (X:1) Rated Output Torque (in-lbs) Max Output Torque (in-lbs) Backlash Maximum (arc-min) Rated Speed (RPM) Stages Efficiency (%) Torsional Rigidity (Nm/arcmin) L2 Length (mm) Weight (lbs) 1pc Price (USD) Add to Cart
Sort by Name GBPH-1802-NP-100 Gear Ratio (X:1) 100 Rated Output Torque (in-lbs) 10488 Max Output Torque (in-lbs) 31465 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-070 Gear Ratio (X:1) 70 Rated Output Torque (in-lbs) 10488 Max Output Torque (in-lbs) 31465 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-050 Gear Ratio (X:1) 50 Rated Output Torque (in-lbs) 11046 Max Output Torque (in-lbs) 33138 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-049 Gear Ratio (X:1) 49 Rated Output Torque (in-lbs) 10487 Max Output Torque (in-lbs) 31462 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-040 Gear Ratio (X:1) 40 Rated Output Torque (in-lbs) 11329 Max Output Torque (in-lbs) 33988 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-035 Gear Ratio (X:1) 35 Rated Output Torque (in-lbs) 10488 Max Output Torque (in-lbs) 31465 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-030 Gear Ratio (X:1) 30 Rated Output Torque (in-lbs) 8736 Max Output Torque (in-lbs) 26208 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-028 Gear Ratio (X:1) 28 Rated Output Torque (in-lbs) 11329 Max Output Torque (in-lbs) 31465 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-025 Gear Ratio (X:1) 25 Rated Output Torque (in-lbs) 11329 Max Output Torque (in-lbs) 33988 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-021 Gear Ratio (X:1) 21 Rated Output Torque (in-lbs) 10488 Max Output Torque (in-lbs) 26208 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-020 Gear Ratio (X:1) 20 Rated Output Torque (in-lbs) 11329 Max Output Torque (in-lbs) 33988 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-016 Gear Ratio (X:1) 16 Rated Output Torque (in-lbs) 11329 Max Output Torque (in-lbs) 33988 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-015 Gear Ratio (X:1) 15 Rated Output Torque (in-lbs) 11329 Max Output Torque (in-lbs) 33988 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-012 Gear Ratio (X:1) 12 Rated Output Torque (in-lbs) 8736 Max Output Torque (in-lbs) 26208 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 94 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1802-NP-009 Gear Ratio (X:1) 9 Rated Output Torque (in-lbs) 8736 Max Output Torque (in-lbs) 26208 Backlash Maximum (arc-min) 10 Rated Speed (RPM) 3000 Stages 2 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 172 Weight (lbs) 110.00 1pc Price (USD) $3,822.00 Call Us Contact Us
Sort by Name GBPH-1801-NP-010 Gear Ratio (X:1) 10 Rated Output Torque (in-lbs) 8736 Max Output Torque (in-lbs) 26208 Backlash Maximum (arc-min) 5 Rated Speed (RPM) 3000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 90 Weight (lbs) 84.00 1pc Price (USD) $3,068.00 Call Us Contact Us
Sort by Name GBPH-1801-NP-007 Gear Ratio (X:1) 7 Rated Output Torque (in-lbs) 10488 Max Output Torque (in-lbs) 31465 Backlash Maximum (arc-min) 5 Rated Speed (RPM) 3000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 90 Weight (lbs) 84.00 1pc Price (USD) $3,068.00 Call Us Contact Us
Sort by Name GBPH-1801-NP-005 Gear Ratio (X:1) 5 Rated Output Torque (in-lbs) 11046 Max Output Torque (in-lbs) 33138 Backlash Maximum (arc-min) 5 Rated Speed (RPM) 3000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 90 Weight (lbs) 84.00 1pc Price (USD) $3,068.00 Call Us Contact Us
Sort by Name GBPH-1801-NP-004 Gear Ratio (X:1) 4 Rated Output Torque (in-lbs) 11329 Max Output Torque (in-lbs) 33988 Backlash Maximum (arc-min) 5 Rated Speed (RPM) 3000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 90 Weight (lbs) 84.00 1pc Price (USD) $3,068.00 Call Us Contact Us
Sort by Name GBPH-1801-NP-003 Gear Ratio (X:1) 3 Rated Output Torque (in-lbs) 8736 Max Output Torque (in-lbs) 26208 Backlash Maximum (arc-min) 5 Rated Speed (RPM) 3000 Stages 1 Efficiency (%) 97 Torsional Rigidity (Nm/arcmin) 115 L2 Length (mm) 90 Weight (lbs) 84.00 1pc Price (USD) $3,068.00 Call Us Contact Us
Loading...

Additional Information

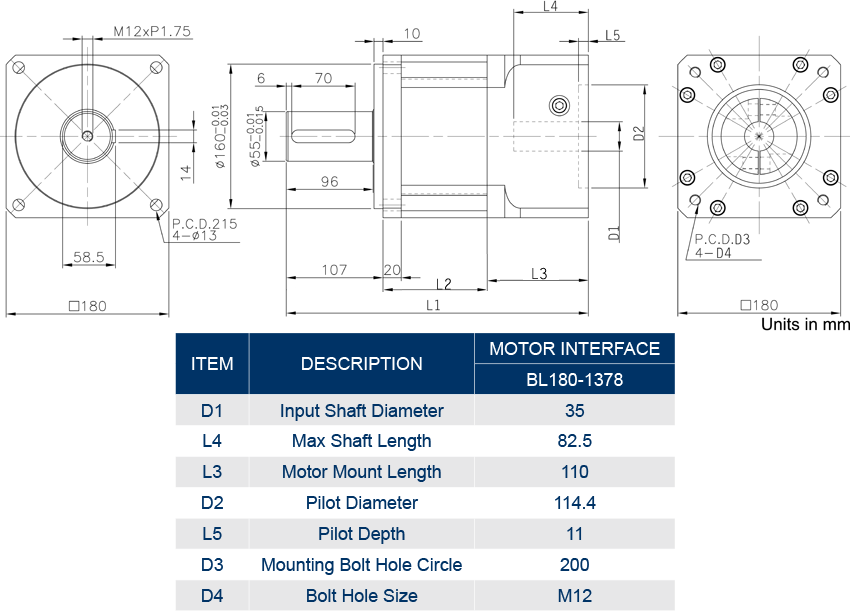

Motor Interface codes shown in this chart represent "suffixes" for complete gearbox part numbers. Choose a gearbox Item from the product table above, and you will be able to select the appropriate motor interface/suffix on the individual product page.

For custom input dimensions, or non-Anaheim Automation motors, fill out our  Gearbox Mounting Form  and submit it to our Sales Engineers at sales@anaheimautomation.com
