GBPS-090x
GBPS-090x | Anaheim Automation, Inc.
Information
.png)
The GBPS-090x Series is an In-Line Planetary Helical Gearbox line that offers great prices without sacrificing precision and quality. The GBPS-090x Series is designed for motion control applications requiring moderate backlash and stiffness. Features include backlash as low as 3 arcminutes, 22 gear ratios for rated torque up to 1328 in-lbs (21,248 oz-in), (model dependent), a precision clamping system and lifetime lubrication. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.
See our GBPS Gearbox Installation Guide
- Compatible with NEMA Size 34
- Backlash as Low as 3 arc-min
- Gear Ratios from 3:1 to 100:1
- Long Design Life, Over 20,000 hrs
- Up to 97 Percent Efficiency
- Max Input Speeds Up to 8,000 RPM
- Operating Temperature of -10° to +90° C
- Rated Output Torque 841 to 1328 in-lb
| Item (click for more information) | Gear Ratio (X:1) | Rated Output Torque (in-lbs) | Max Output Torque (in-lbs) | Backlash Maximum (arc-min) | Maximum Input Speed (RPM) | Stages | Efficiency (%) | Torsional Rigidity (Nm/arcmin) | L2 Length (mm) | Weight (lbs) | 1pc Price (USD) | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GBPS-0902-NM-100 | 100 | 841 | 1514 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-090 | 90 | 841 | 1514 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-080 | 80 | 974 | 1753 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-070 | 70 | 1106 | 1991 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-060 | 60 | 1195 | 2151 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-050 | 50 | 1239 | 2230 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-045 | 45 | 1239 | 2230 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-040 | 40 | 1239 | 2230 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-035 | 35 | 1239 | 2230 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-030 | 30 | 1239 | 2230 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-025 | 25 | 1239 | 2230 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-020 | 20 | 1328 | 2390 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-015 | 15 | 1283 | 2309 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0902-NM-012 | 12 | 1283 | 2309 | 5 | 8000 | 2 | 94 | 12 | 86 | 12.35 | $1,436.00 | Configure |
| GBPS-0901-NM-010 | 10 | 841 | 1514 | 3 | 8000 | 1 | 97 | 12 | 46 | 7.72 | $959.00 | Configure |
| GBPS-0901-NM-009 | 9 | 841 | 1514 | 3 | 8000 | 1 | 97 | 12 | 46 | 7.72 | $959.00 | Configure |
| GBPS-0901-NM-008 | 8 | 974 | 1753 | 3 | 8000 | 1 | 97 | 12 | 46 | 7.72 | $959.00 | Configure |
| GBPS-0901-NM-007 | 7 | 1106 | 1991 | 3 | 8000 | 1 | 97 | 12 | 46 | 7.72 | $959.00 | Configure |
| GBPS-0901-NM-006 | 6 | 1195 | 2151 | 3 | 8000 | 1 | 97 | 12 | 46 | 7.72 | $959.00 | Configure |
| GBPS-0901-NM-005 | 5 | 1239 | 2230 | 3 | 8000 | 1 | 97 | 12 | 46 | 7.72 | $959.00 | Configure |
| GBPS-0901-NM-004 | 4 | 1328 | 2390 | 3 | 8000 | 1 | 97 | 12 | 46 | 7.72 | $959.00 | Configure |
| GBPS-0901-NM-003 | 3 | 1283 | 2309 | 3 | 8000 | 1 | 97 | 12 | 46 | 7.72 | $959.00 | Configure |
Additional Information
The BL080 has replaced the old BLK32 and SMH80 designation. All dimensions remain unchanged.

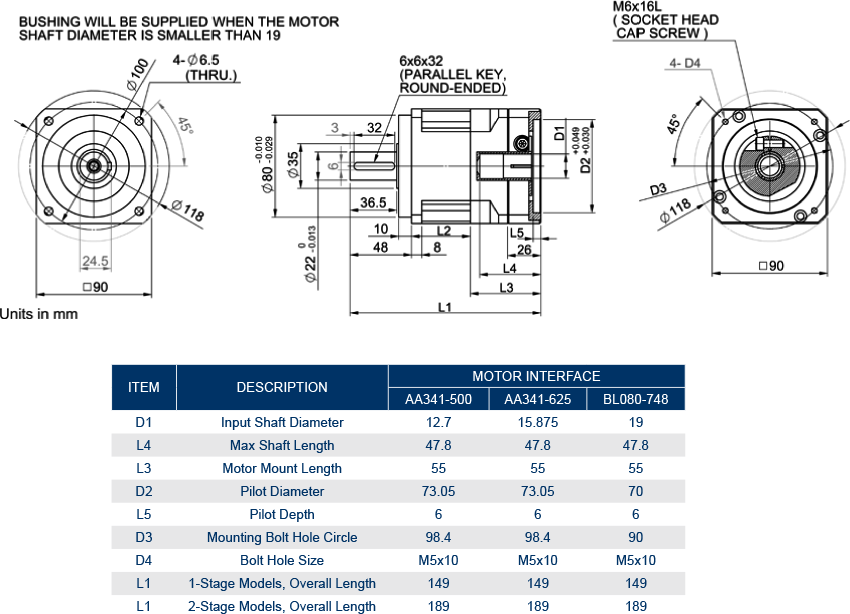

Motor Interface codes shown in this chart represent "suffixes" for complete gearbox part numbers. Choose a gearbox Item from the product table above, and you will be able to select the appropriate motor interface/suffix on the individual product page.
For custom input dimensions, or non-Anaheim Automation motors, fill out our Gearbox Mounting Form and submit it to our Sales Engineers at [email protected]
