GBPN-064x-FS

GBPN-064x-FS | Anaheim Automation, Inc.

Information

The GBPN-064x-FS Series Planetary Gearbox offers you the precision you need at the prices you want! This Planetary Gearbox is designed with the highest torque density possible for motion control, automation, and robotic applications requiring a compact solution. This planetary gearbox series is an ideal match for the NEMA 23 frame size as well as your servo, stepper, brushless, AC or DC motors. Built with the design goal of offering a cost effective product without sacrificing quality, you will find that this Planetary Gearbox offers you an extraordinary value. You will find online prices on this website along with all the information you need to know to select the perfect Planetary Gearbox for your applications. Please verify all dimensions when matching a gearbox to a specific motor, as critical dimensions will vary among series and manufacturers.

  • Compatible with NEMA Size 23
  • Backlash as Low as 16 arc-min
  • Gear Ratios from 3 to 64
  • Long Design Life, Over 30,000 hrs
  • 96 Percent Efficiency
  • Rated Output Torque 159 to 389 in-lb
Item Gear Ratio (X:1) Rated Output Torque (in-lbs) Max Output Torque (in-lbs) Backlash Maximum (arc-min) Maximum Input Speed (RPM) Stages Efficiency (%) L2 Length (mm) Weight (lbs) 1pc Price (USD) Add to Cart
Sort by Name GBPN-0642-FS-064 Gear Ratio (X:1) 64 Rated Output Torque (in-lbs) 159 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 12 Maximum Input Speed (RPM) 13000 Stages 2 Efficiency (%) 96 L2 Length (mm) 58 Weight (lbs) 3.10 1pc Price (USD) $761.00 Call Us Contact Us
Sort by Name GBPN-0642-FS-040 Gear Ratio (X:1) 40 Rated Output Torque (in-lbs) 354 Max Output Torque (in-lbs) 566 Backlash Maximum (arc-min) 12 Maximum Input Speed (RPM) 13000 Stages 2 Efficiency (%) 96 L2 Length (mm) 58 Weight (lbs) 3.10 1pc Price (USD) $761.00 Call Us Contact Us
Sort by Name GBPN-0642-FS-032 Gear Ratio (X:1) 32 Rated Output Torque (in-lbs) 389 Max Output Torque (in-lbs) 620 Backlash Maximum (arc-min) 12 Maximum Input Speed (RPM) 13000 Stages 2 Efficiency (%) 96 L2 Length (mm) 58 Weight (lbs) 3.10 1pc Price (USD) $761.00 Call Us Contact Us
Sort by Name GBPN-0642-FS-025 Gear Ratio (X:1) 25 Rated Output Torque (in-lbs) 354 Max Output Torque (in-lbs) 566 Backlash Maximum (arc-min) 12 Maximum Input Speed (RPM) 13000 Stages 2 Efficiency (%) 96 L2 Length (mm) 58 Weight (lbs) 3.10 1pc Price (USD) $761.00
Sort by Name GBPN-0642-FS-020 Gear Ratio (X:1) 20 Rated Output Torque (in-lbs) 389 Max Output Torque (in-lbs) 620 Backlash Maximum (arc-min) 12 Maximum Input Speed (RPM) 13000 Stages 2 Efficiency (%) 96 L2 Length (mm) 58 Weight (lbs) 3.10 1pc Price (USD) $761.00 Call Us Contact Us
Sort by Name GBPN-0642-FS-016 Gear Ratio (X:1) 16 Rated Output Torque (in-lbs) 389 Max Output Torque (in-lbs) 620 Backlash Maximum (arc-min) 12 Maximum Input Speed (RPM) 13000 Stages 2 Efficiency (%) 96 L2 Length (mm) 58 Weight (lbs) 3.10 1pc Price (USD) $761.00 Call Us Contact Us
Sort by Name GBPN-0642-FS-015 Gear Ratio (X:1) 15 Rated Output Torque (in-lbs) 389 Max Output Torque (in-lbs) 620 Backlash Maximum (arc-min) 12 Maximum Input Speed (RPM) 13000 Stages 2 Efficiency (%) 96 L2 Length (mm) 58 Weight (lbs) 3.10 1pc Price (USD) $761.00 Call Us Contact Us
Sort by Name GBPN-0642-FS-012 Gear Ratio (X:1) 12 Rated Output Torque (in-lbs) 389 Max Output Torque (in-lbs) 620 Backlash Maximum (arc-min) 12 Maximum Input Speed (RPM) 13000 Stages 2 Efficiency (%) 96 L2 Length (mm) 58 Weight (lbs) 3.10 1pc Price (USD) $761.00 Call Us Contact Us
Sort by Name GBPN-0642-FS-009 Gear Ratio (X:1) 9 Rated Output Torque (in-lbs) 389 Max Output Torque (in-lbs) 620 Backlash Maximum (arc-min) 12 Maximum Input Speed (RPM) 13000 Stages 2 Efficiency (%) 96 L2 Length (mm) 58 Weight (lbs) 3.10 1pc Price (USD) $761.00 Call Us Contact Us
Sort by Name GBPN-0641-FS-008 Gear Ratio (X:1) 8 Rated Output Torque (in-lbs) 160 Max Output Torque (in-lbs) 257 Backlash Maximum (arc-min) 10 Maximum Input Speed (RPM) 13000 Stages 1 Efficiency (%) 96 L2 Length (mm) 45 Weight (lbs) 2.40 1pc Price (USD) $638.00 Call Us Contact Us
Sort by Name GBPN-0641-FS-005 Gear Ratio (X:1) 5 Rated Output Torque (in-lbs) 354 Max Output Torque (in-lbs) 566 Backlash Maximum (arc-min) 10 Maximum Input Speed (RPM) 13000 Stages 1 Efficiency (%) 96 L2 Length (mm) 45 Weight (lbs) 2.40 1pc Price (USD) $638.00 Call Us Contact Us
Sort by Name GBPN-0641-FS-004 Gear Ratio (X:1) 4 Rated Output Torque (in-lbs) 336 Max Output Torque (in-lbs) 540 Backlash Maximum (arc-min) 10 Maximum Input Speed (RPM) 13000 Stages 1 Efficiency (%) 96 L2 Length (mm) 45 Weight (lbs) 2.40 1pc Price (USD) $638.00 Call Us Contact Us
Sort by Name GBPN-0641-FS-003 Gear Ratio (X:1) 3 Rated Output Torque (in-lbs) 248 Max Output Torque (in-lbs) 398 Backlash Maximum (arc-min) 10 Maximum Input Speed (RPM) 13000 Stages 1 Efficiency (%) 96 L2 Length (mm) 45 Weight (lbs) 2.40 1pc Price (USD) $638.00 Call Us Contact Us
Loading...

Additional Information

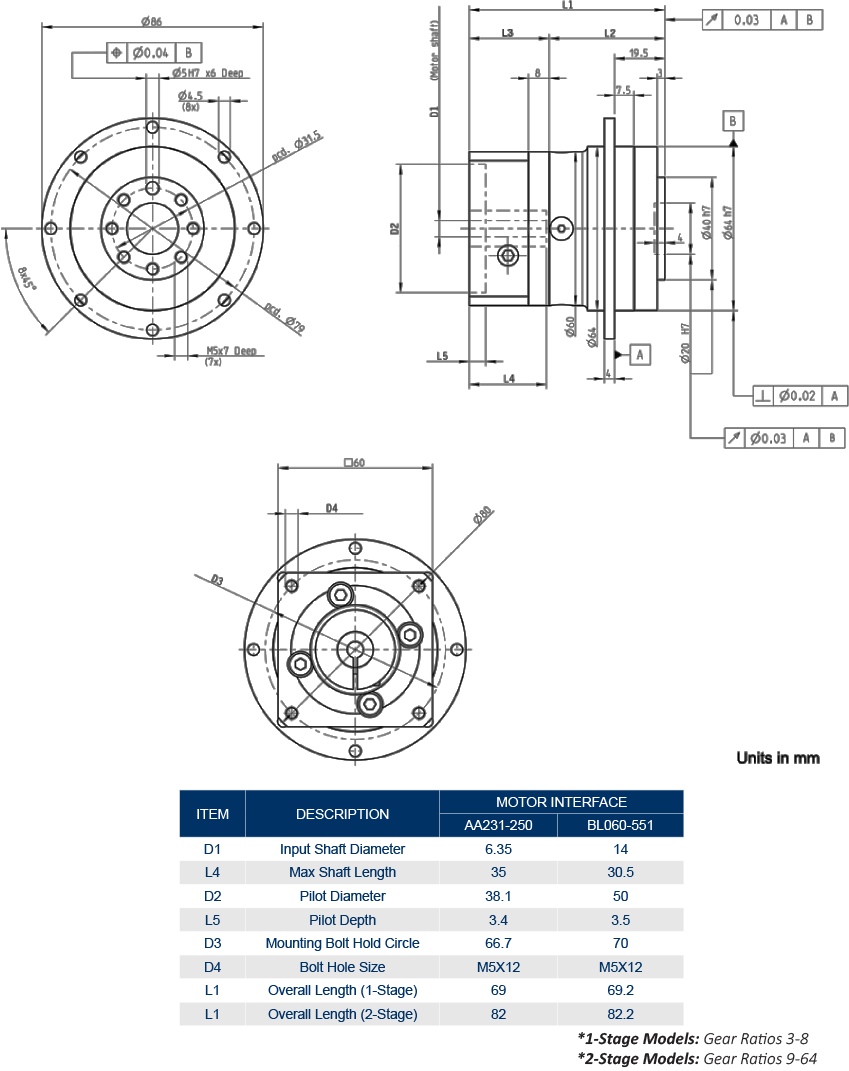

Motor Interface codes shown in this chart represent "suffixes" for complete gearbox part numbers. Choose a gearbox Item from the product table above, and you will be able to select the appropriate motor interface/suffix on the individual product page.

For custom input dimensions, or non-Anaheim Automation motors, fill out our  Gearbox Mounting Form  and submit it to our Sales Engineers at sales@anaheimautomation.com
