KNC-SRV-SMC130D-0120-30ABK-4DKR
| Rated Torque (oz-in) | 538 |
|---|---|
| Rated Power (Watts) | 1200 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 4000 |
| Rated Current (Arms) | 31.6 |
| Voltage | 24-70 VDC |
| Brake | Yes |
| Inertia (oz-in-sec2) | 0.10621 |
| Torque Constant KT (oz-in/A) | 18.7 |
| Resistance (ohms) | 0.04 |
| Inductance (mH) | 0.3 |
| Length (mm) | 208 |
| Weight (lbs) | 18.74 |
| Lead Time | Typ 40 Days |
Interested in large quantity discount?
Product Information

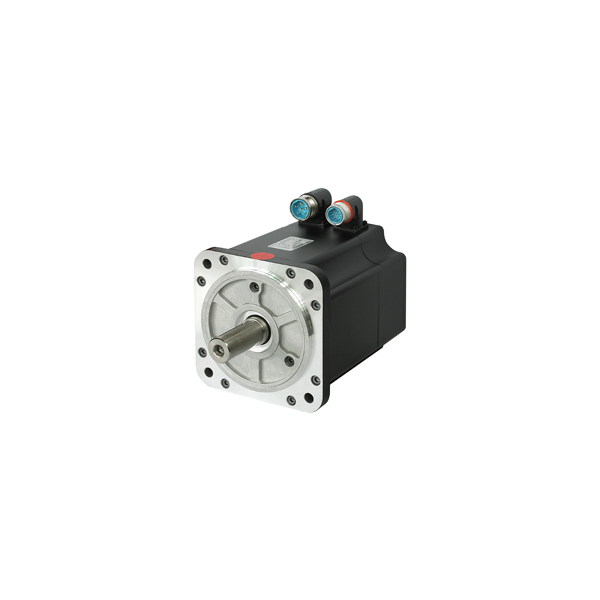

The KNC-SRV-SMC130D-0120-30ABK-4DKR Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 130mm square flange size motors boast peak torque values up to 1,345 oz-in and a rated torque of 538 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a brake, as well as a 2,500 PPR Incremental Encoder for better cushioning ability and a higher cost-performance ratio. These Servo Motors are rated for Class F Insulation, the highest insulation class available, allowing them to operate quietly, with high reliability and stability even in high-temperature environments.
- 24-70VDC Servo Motor with Brake
- 1200W Power Rating
- Rated Torque of 538 oz-in
- Rated Speed of 3000 RPM
- Maximum Speed of 4000 RPM
- 2500 PPR Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
