KNC-SRV-SMH110D-0120-30AAK-4DKR
| Rated Torque (oz-in) | 566 |
|---|---|
| Rated Power (Watts) | 1260 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 4000 |
| Rated Current (Arms) | 32 |
| Voltage | 24-70 VDC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.08213 |
| Torque Constant KT (oz-in/A) | 18.7 |
| Resistance (ohms) | 0.04 |
| Inductance (mH) | 0.2 |
| Length (mm) | 168 |
| Weight (lbs) | 13.67 |
Interested in large quantity discount?
Product Information

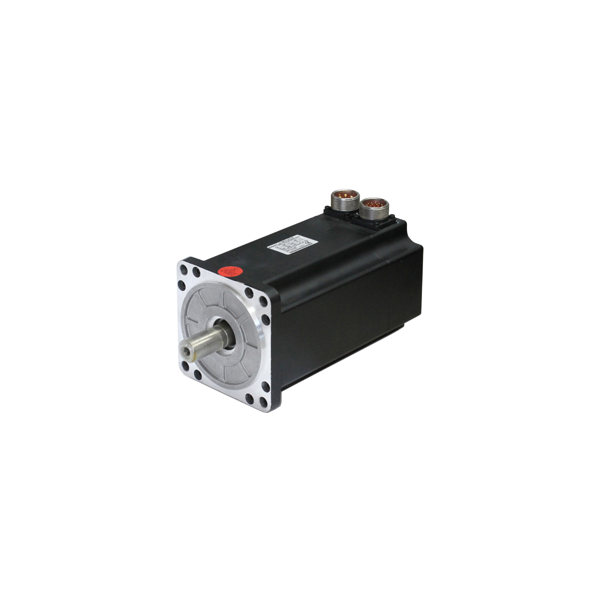

The KNC-SRV-SMH110D-0120-30AAK-4DKR Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 110mm square flange size motors boast peak torque values up to 1,699 oz-in and a rated torque of 566 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a 2,500 PPR Incremental Encoder for better cushioning ability and higher cost-performance ratio. These Servo Motors are rated for Class F Insulation, the highest insulation class available, allowing them to operate quietly, with high reliability and stability even in high-temperature environments.
- 24-70VDC Servo Motor
- 1260W Power Rating
- Rated Torque of 566 oz-in
- Rated Speed of 3000 RPM
- Maximum Speed of 4000 RPM
- 2500PPR Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
