KNC-SRV-SMH110D-0120-30ABK-4DKR

1pc Price:
$789.00
Quantity Discount
  • Buy 10 for $773.74 each and save 2%
  • Buy 25 for $687.67 each and save 13%
  • Buy 50 for $646.15 each and save 18%
  • Buy 100 for $637.05 each and save 19%
Inventory:
More Information
Rated Torque (oz-in) 566
Rated Power (Watts) 1260
Rated Speed (RPM) 3000
Max Speed (rpm) 4000
Rated Current (Arms) 32
Voltage 24-70 VDC
Brake Yes
Inertia (oz-in-sec2) 0.08638
Torque Constant KT (oz-in/A) 18.7
Resistance (ohms) 0.04
Inductance (mH) 0.2
Length (mm) 228
Weight (lbs) 15.87
Lead Time Typ 40 Days
Interested in large quantity discount?

Product Information

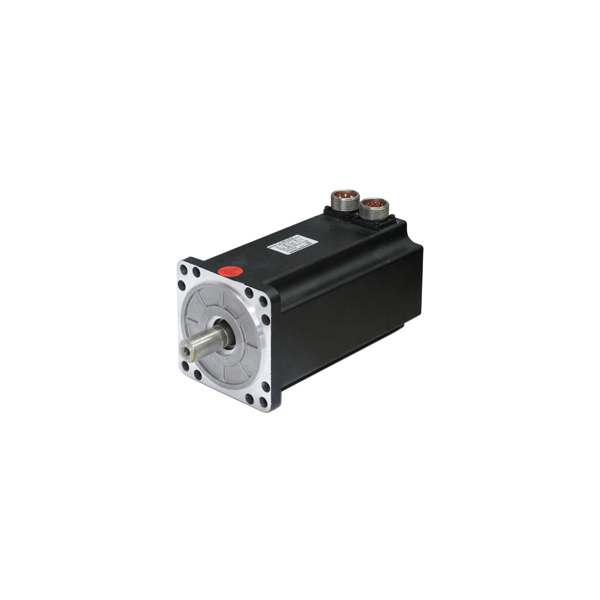

The KNC-SRV-SMH110D-0120-30ABK-4DKR Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 110mm square flange size motors boast peak torque values up to 1,699 oz-in and a rated torque of 566 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a brake, as well as a 2,500 PPR Incremental Encoder for better cushioning ability and higher cost-performance ratio. These Servo Motors are rated for Class F Insulation, the highest insulation class available, allowing them to operate quietly, with high reliability and stability even in high-temperature environments.

  • 24-70VDC Servo Motor with Brake
  • 1260W Power Rating
  • Rated Torque of 566 oz-in
  • Rated Speed of 3000 RPM
  • Maximum Speed of 4000 RPM
  • 2500PPR Incremental Encoder
  • IP65 Body, IP54 Shaft Seal
  • CE Certified
