KNC-SRV-SMC60S-0060-30ABK-5DSH
| Rated Torque (oz-in) | 270 |
|---|---|
| Rated Power (Watts) | 600 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 4100 |
| Rated Current (Arms) | 16.5 |
| Voltage | 24-70 VDC |
| Brake | Yes |
| Inertia (oz-in-sec2) | 0.00576 |
| Torque Constant KT (oz-in/A) | 17.5 |
| Resistance (ohms) | 0.12 |
| Inductance (mH) | 0.4 |
| Length (mm) | 167.5 ± 1.5 |
| Weight (lbs) | 5.07 |
Interested in large quantity discount?
Product Information

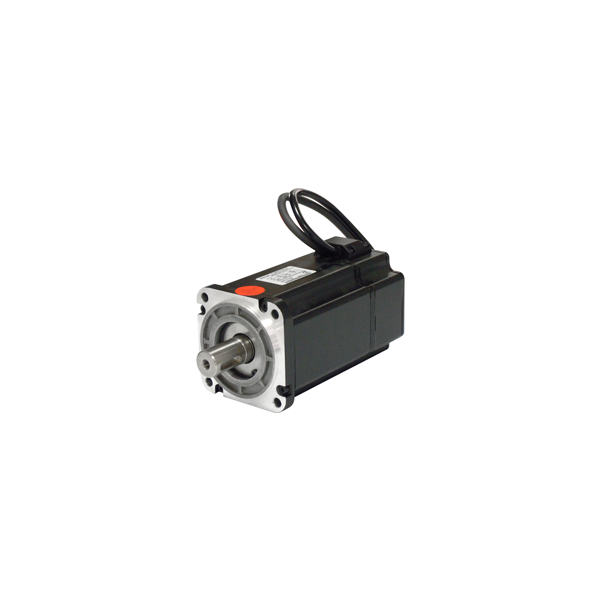

KNC-SRV-SMC60S-0060-30ABK-5DSH Servo Motors offer a low-cost solution for motion control applications requiring position and speed control. These motors are available in a 60mm square flange size and are equipped with a brake. A 2500 PPR Incremental Encoder allows for better cushioning ability and a higher cost-performance ratio. These motors are rated for Class F Insulation, the highest level of insulation available. They operate quietly with high reliability and stability in high-temperature environments. These Servo Motors boast peak torque values up to 811 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and has a rated torque of 270 oz-in.
- 24-70VDC Servo Motor with Brake
- 600W Power Rating
- Rated Torque of 270 oz-in
- Maximum Speed of 4200 RPM
- Incremental Encoder
- IP65 Body, IP54 Shaft Seal
.png)
.png)
.png)
.png)
Spec Sheet (PDF)
