KNC-SRV-SMC60S-0060-30ABK-5DSH

KNC-SRV-SMC60S-0060-30ABK-5DSH

KNC-SRV-SMH60S-0020-30ABK-3AKH

KNC-SRV-SMH60S-0020-30ABK-3AKH

KNC-SRV-SMH60S-0020-30AAK-3AKH

1pc Price:
$227.00
Quantity Discount
  • Buy 10 for $220.22 each and save 3%
  • Buy 25 for $217.08 each and save 4%
  • Buy 50 for $203.49 each and save 10%
  • Buy 100 for $178.27 each and save 21%
Inventory:
1
More Information
Rated Torque (oz-in) 90
Rated Power (Watts) 200
Rated Speed (RPM) 3000
Max Speed (rpm) 6000
Rated Current (Arms) 2.7
Voltage 120 VAC
Brake No
Inertia (oz-in-sec2) 0.00365
Torque Constant KT (oz-in/A) 33.9
Resistance (ohms) 2.1
Inductance (mH) 4.1
Length (mm) 120
Weight (lbs) 2.87
Interested in large quantity discount?

Product Information

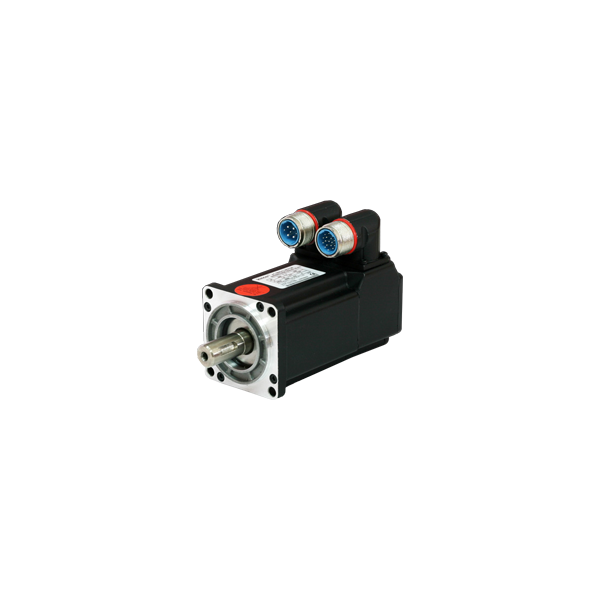

KNC-SRV-SMH60S-0020-30AAK-3AKH Servo Motors are a low-cost solution for a variety of motion control applications requiring a low-inertia design to maximize torque at high speeds. These 60mm square flange size motors boast peak torque values up to 271 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a 2,500 PPR Incremental Encoder for better cushioning ability and a higher cost-performance ratio.

  • 120-220 VAC Servo Motor
  • 200W Power Rating
  • Rated Torque of 90 oz-in
  • Maximum Speed of 6200 rpm
  • Incremental Encoder
  • IP65 Body, IP54 Shaft Seal
  • CE Certified

Spec Sheet (PDF)

Technical Specifications
