KNC-SRV-SMC80S-0075-30AAK-3LKH
| Rated Torque (oz-in) | 338 |
|---|---|
| Rated Power (Watts) | 750 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 5500 |
| Rated Current (Arms) | 3.8 |
| Voltage | 220 VAC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.01539 |
| Torque Constant KT (oz-in/A) | 0.662 |
| Resistance (ohms) | 2.1 |
| Inductance (mH) | 10.5 |
| Length (mm) | 139 |
| Weight (lbs) | 6.17 |
| Lead Time | Typ 40 Days |
Interested in large quantity discount?
Product Information

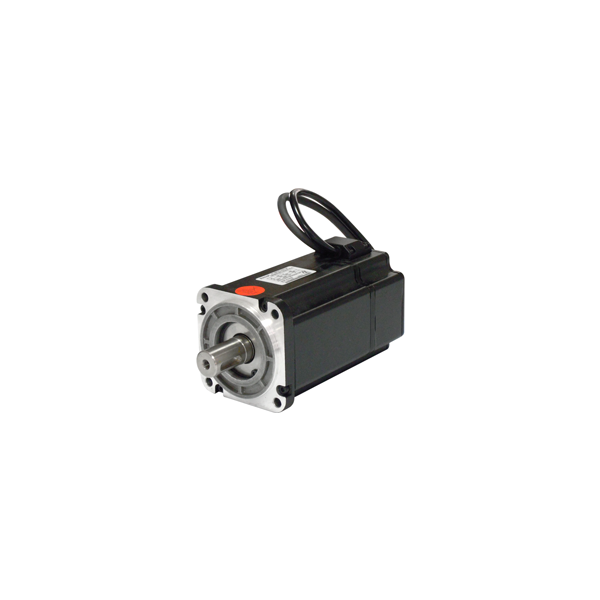

Our KNC-SRV-SMC80S-0075-30AAK-3LKH Servo Motors offer a low-cost solution for motion control applications requiring position and speed control. These motors are available in an 80mm square flange size and are equipped with a 2500 PPR Incremental Encoder for better cushioning ability and a higher cost-performance ratio. KNC-SRV-SMC80S-0075-30AAK-3LKH motors are rated for Class F insulation, the highest insulation class available. They operate quietly with high reliability and stability in high-temperature environments. These Servo Motors boast peak torque values up to 1,014 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and has a rated torque of 338 oz-in.
- 220VAC Servo Motor
- 750W Power Rating
- Rated Torque of 338 oz-in
- Rated Speed of 3000 RPM
- Maximum Speed of 3690 RPM
- Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
