KNC-SRV-SMC80S-0100-30MBK-5DSU
| Rated Torque (oz-in) | 450 |
|---|---|
| Rated Power (Watts) | 1000 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 4100 |
| Rated Current (Arms) | 26.4 |
| Voltage | 24-70 VDC |
| Brake | Yes |
| Inertia (oz-in-sec2) | 0.01996 |
| Torque Constant KT (oz-in/A) | 17.6 |
| Resistance (ohms) | 0.047 |
| Inductance (mH) | 0.2 |
| Length (mm) | 157 ± 1.5 |
| Weight (lbs) | 7.27 |
Interested in large quantity discount?
Product Information

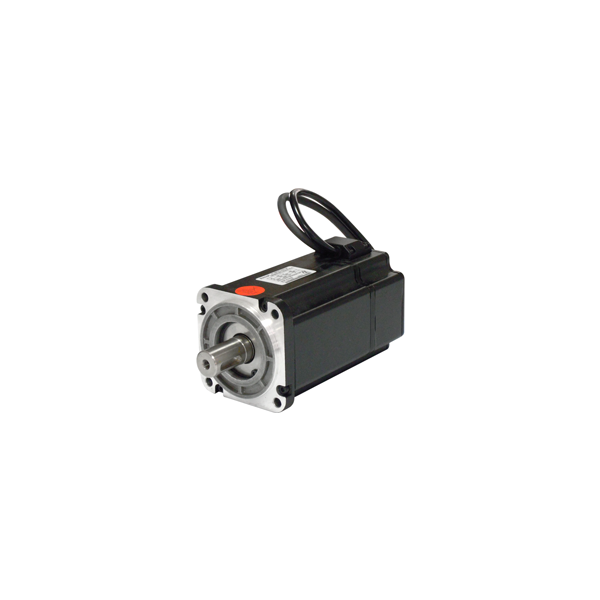

The KNC-SRV-SMC80S-0100-30MBK-5DSU Servo Motor offers a low-cost solution for motion control applications requiring position and speed control. These motors are available in an 80mm square flange size and are equipped with a Brake and a Magnetoelectric Encoder to allow for better cushioning ability and a higher cost-performance ratio. KNC-SRV-SMC80S-0100-30MBK-5DSU motors are rated for Class F insulation, the highest insulation class available. They operate quietly with high reliability and stability in high-temperature environments. These Servo Motors boast peak torque values up to 1,350 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and has a rated torque of 450 oz-in.
- 24-70VDC Servo Motor
- 1000W Power Rating
- Rated Torque of 450 oz-in
- Maximum Speed of 4200 RPM
- Magnetoelectric Encoder
- IP65 Body, IP54 Shaft Seal
.png)
.png)
.png)
.png)
