KNC-SRV-SMC80S-0100-30MBK-5DSU

KNC-SRV-SMC80S-0100-30MBK-5DSU

KNC-SRV-SMC80S-0100-30ABK-5DSH

KNC-SRV-SMC80S-0100-30ABK-5DSH

KNC-SRV-SMC80S-0100-30AAK-5DSH

Unit Price:
$372.00
Quantity Discount
  • Buy 10 for $365.93 each and save 2%
  • Buy 25 for $342.92 each and save 8%
  • Buy 50 for $332.84 each and save 11%
  • Buy 100 for $279.81 each and save 25%
Inventory:
6
In stock
More Information
Rated Torque (oz-in) 450
Rated Power (Watts) 1000
Rated Speed (RPM) 3000
Max Speed (rpm) 4100
Rated Current (Arms) 26.4
Voltage 24-70 VDC
Brake No
Inertia (oz-in-sec2) 0.01996
Torque Constant KT (oz-in/A) 17.6
Resistance (ohms) 0.05
Inductance (mH) 0.2
Length (mm) 122.7 ± 1.5
Weight (lbs) 6.17
Interested in large quantity discount?

Product Information

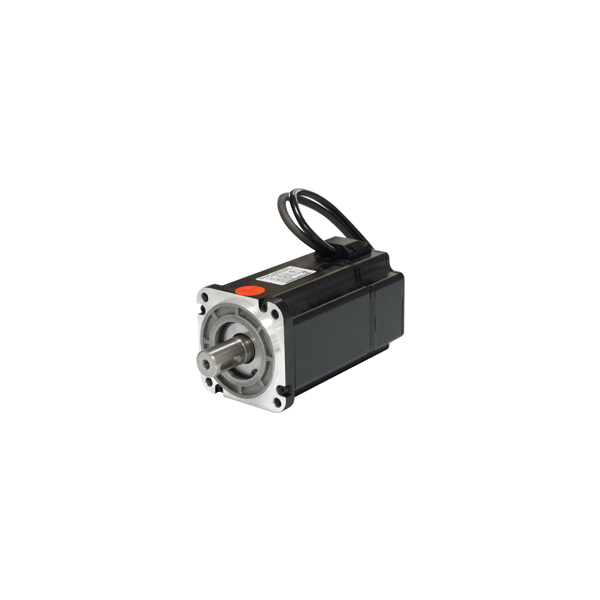

The KNC-SRV-SMC80S-0100-30AAK-5DSH Servo Motor offers a low-cost solution for motion control applications requiring position and speed control. These motors are available in an 80mm square flange size and are equipped with a 2500 PPR Incremental Encoder to allow for better cushioning ability and a higher cost-performance ratio. KNC-SRV-SMC80S-0100-30AAK-5DSH motors are rated for Class F insulation, the highest insulation class available. They operate quietly with high reliability and stability in high-temperature environments. These Servo Motors boast peak torque values up to 1,350 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and has a rated torque of 450 oz-in.

  • 24-70VDC Servo Motor
  • 1000W Power Rating
  • Rated Torque of 450 oz-in
  • Maximum Speed of 4200 RPM
  • Incremental Encoder
  • IP65 Body, IP54 Shaft Seal

Spec Sheet (PDF)

.STEP File (.zip)
