KNC-SRV-SMS60S-0040-30JAK-3LKU
| Rated Torque (oz-in) | 179 |
|---|---|
| Rated Power (Watts) | 400 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 6000 |
| Rated Current (Arms) | 2.4 |
| Voltage | 220 VAC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.00573 |
| Torque Constant KT (oz-in/A) | 79.5 |
| Resistance (ohms) | 5.8 |
| Inductance (mH) | 11.5 |
| Length (mm) | 115 |
| Weight (lbs) | 3.52 |
Interested in large quantity discount?
Product Information

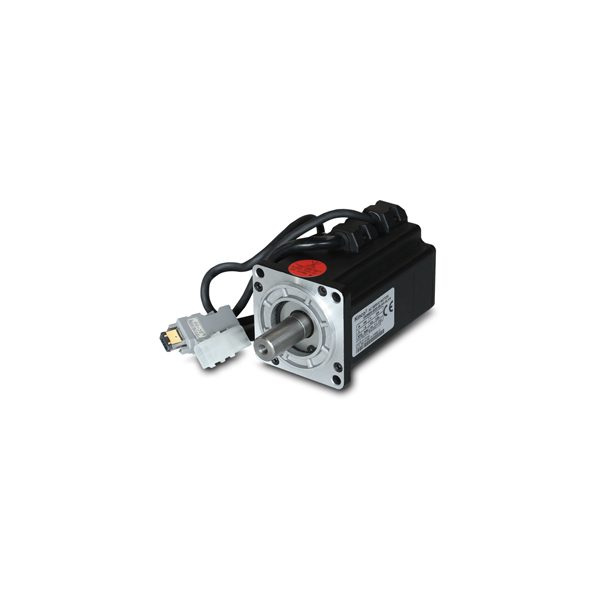

KNC-SRV-SMS60S-0040-30JAK-3LKU Servo Motors are a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 60mm frame size motors boast peak torque values up to 539 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a brake as well as a Single Coil 20-bit Communication Encoder.
Shop KNC-SRV-FD423 Servo Drives to match the KNC-SRV-SMS60S-0040-30JAK-3LKU motor and complete your system.
- 220 VAC Servo Motor
- 400W Power Rating
- Rated Torque of 179 oz-in
- Maximum Speed of 6000 RPM
- Communication Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
.png)
.png)
.png)
.png)
