CPC Linear Guides

CPC Linear Guides | Anaheim Automation, Inc.

Information

Anaheim Automation's CPC Linear Guides are precision-engineered linear components designed to provide smooth and accurate linear motion in a variety of motion control applications.

Linear Rails

  • Rail Widths: 15mm - 45mm
  • Standard Rail Lengths: Up to 4,000mm
  • Custom Rail Lengths Available

Linear Bearing Blocks

  • Block Widths: Standard and Flanged
  • Block Lengths: Short, Normal, and Long
  • End-Seal Options: Standard and Reinforced
  • Preload Classes: Standard, Light and Medium

Featured Series

CPC-AR15 Rails
  • Rail Width: 15mm
  • Use with: CPC-xRC15 Blocks
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm

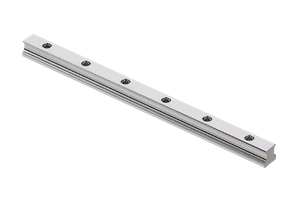

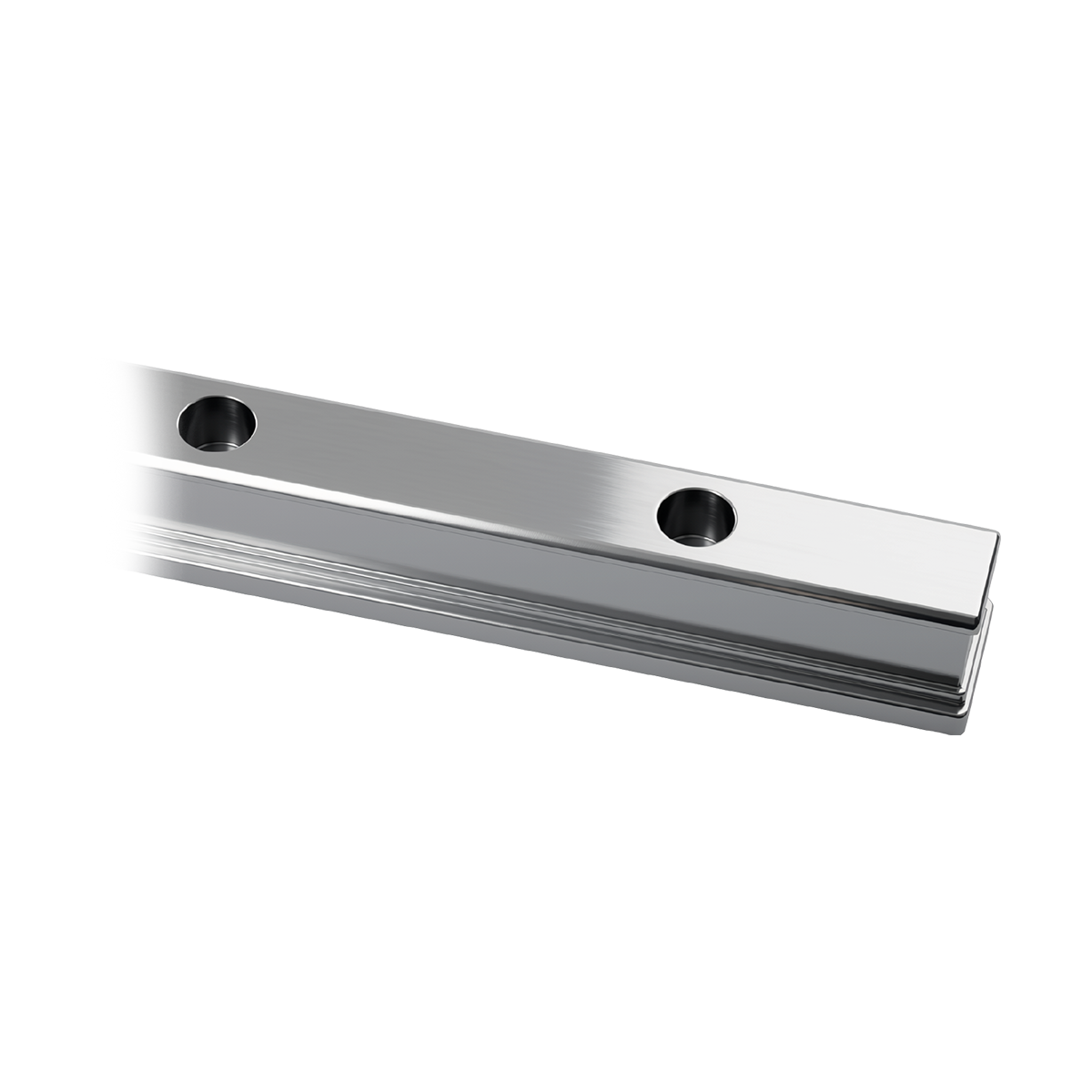

CPC-AR20 Rails
  • Rail Width: 20mm
  • Use with: CPC-xRC20 Blocks
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm
CPC-AR25 Rails
  • Rail Width: 23mm
  • Use with: CPC-xRC25 Blocks
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm
CPC-AR30 Rails
  • Rail Width: 28mm
  • Use with: CPC-xRC30 Blocks
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm

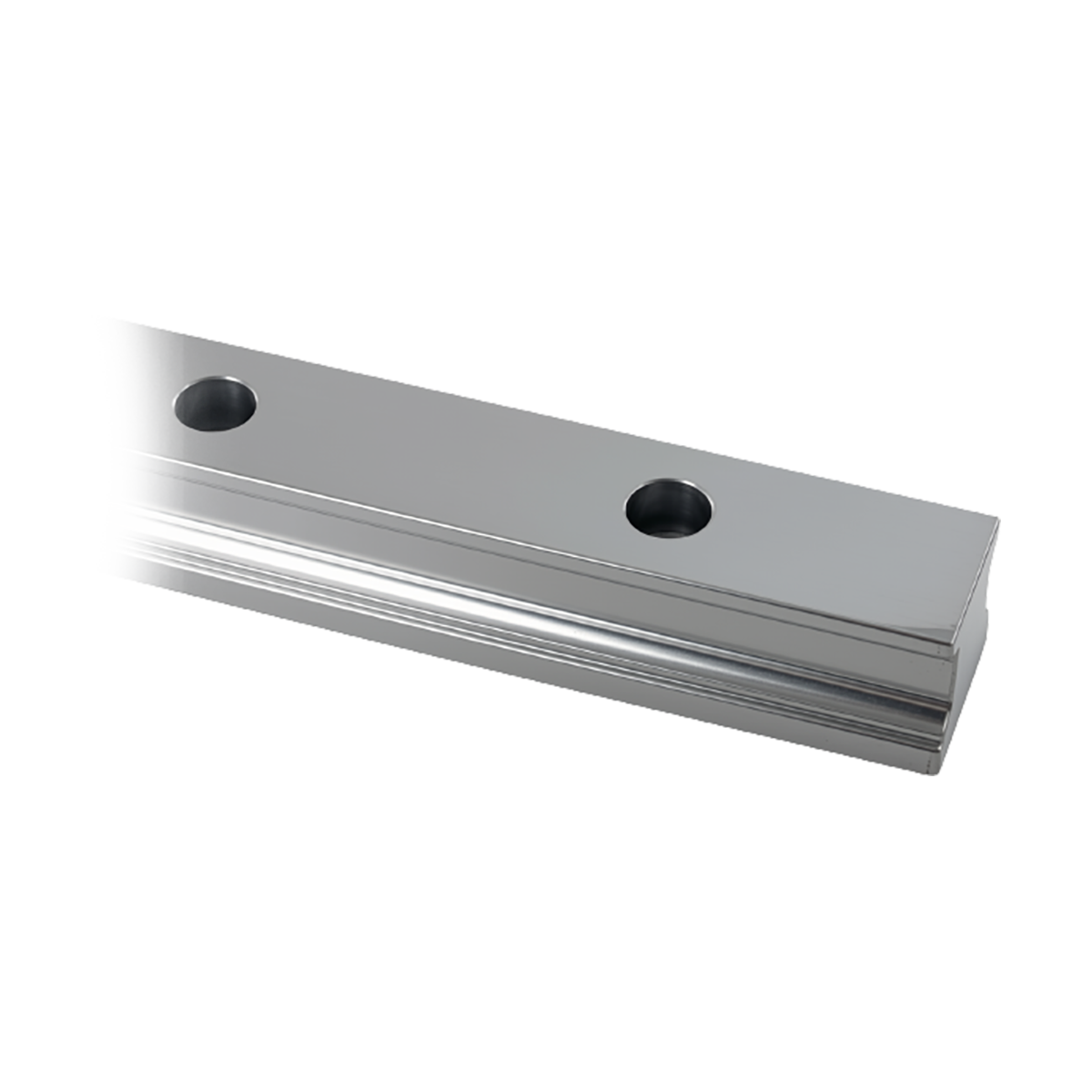

CPC-AR35 Rails
  • Rail Width: 34mm
  • Use with: CPC-xRC35 Blocks
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm
CPC-AR45 Rails
  • Rail Width: 45mm
  • Use with: CPC-xRC45 Blocks
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm

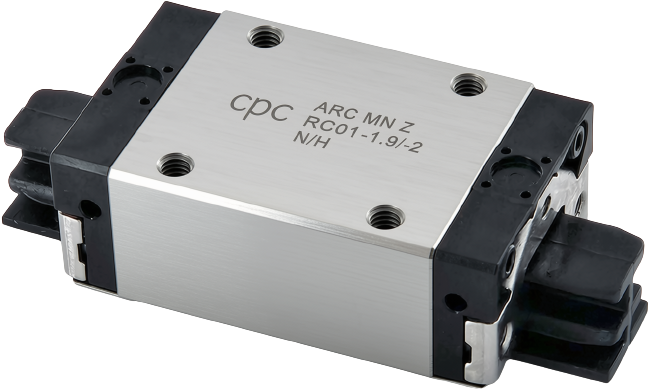

CPC-xRC15 Blocks
  • For Rail Width: 15mm
  • Block Width: 34mm, 47mm, or 52mm
  • Assembly Height: 24-28mm
  • Dynamic Load: Up to 9.9kN
  • Static Load: Up to 17.5kN
  • Rail Lengths Up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More

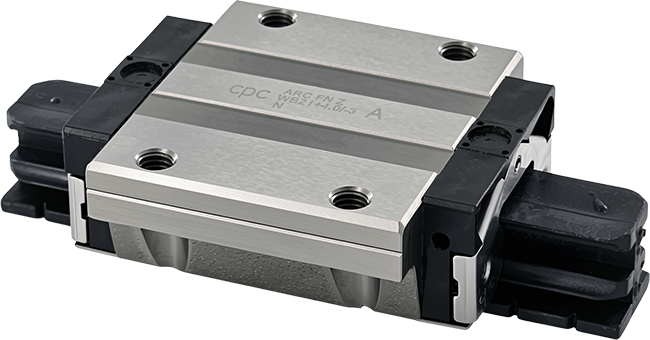

CPC-xRC20 Blocks
  • For Rail Width: 20mm
  • Block Width: 42-63mm
  • Assembly Height: 28mm or 30mm
  • Dynamic Load: Up to 20.8kN
  • Static Load: Up to 43.3kN
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More
CPC-xRC25 Blocks
  • For Rail Width: 23mm
  • Block Width: 48, 70, or 73mm
  • Assembly Height: 33-40mm
  • Dynamic Load: Up to 5,260 lbs.
  • Static Load: Up to 10,903 lbs.
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More
CPC-xRC30 Blocks
  • For Rail Width: 28mm
  • Block Width: 60 or 90mm
  • Assembly Height: 42-45mm
  • Dynamic Load: Up to 7,351 lbs.
  • Static Load: Up to 13,241 lbs.
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More

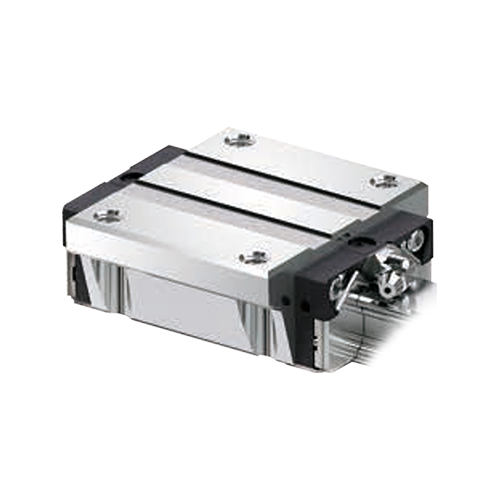

CPC-xRC35 Blocks
  • For Rail Width: 34mm
  • Block Width: 70-100mm
  • Assembly Height: 48-55mm
  • Dynamic Load: Up to 12,297 lbs.
  • Static Load: Up to 23,942 lbs.
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More
CPC-xRC45 Blocks
  • For Rail Width: 45mm
  • Block Width: 86-120mm
  • Assembly Height: 60-70mm
  • Dynamic Load: Up to 20,120 lbs.
  • Static Load: Up to 38,015 lbs.
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More

12 Item(s)

Show per page

These Linear Guides are crafted with precision-ground rails and recirculating ball bearing Blocks, or "sliders," which minimize friction and optimize performance. This design not only enhances the durability of the linear guides but also enables precise and reliable motion in industrial and automation systems. Whether used in manufacturing, robotics, or other industries, Anaheim Automation's Linear Guides can meet the demands of any applications that require reliable and high-performance linear motion solutions. Our wide selection includes Linear Rails and Linear Bearing Blocks sold separately.

Note: For assistance with making a selection, please contact our representatives to discuss your application requirements.
