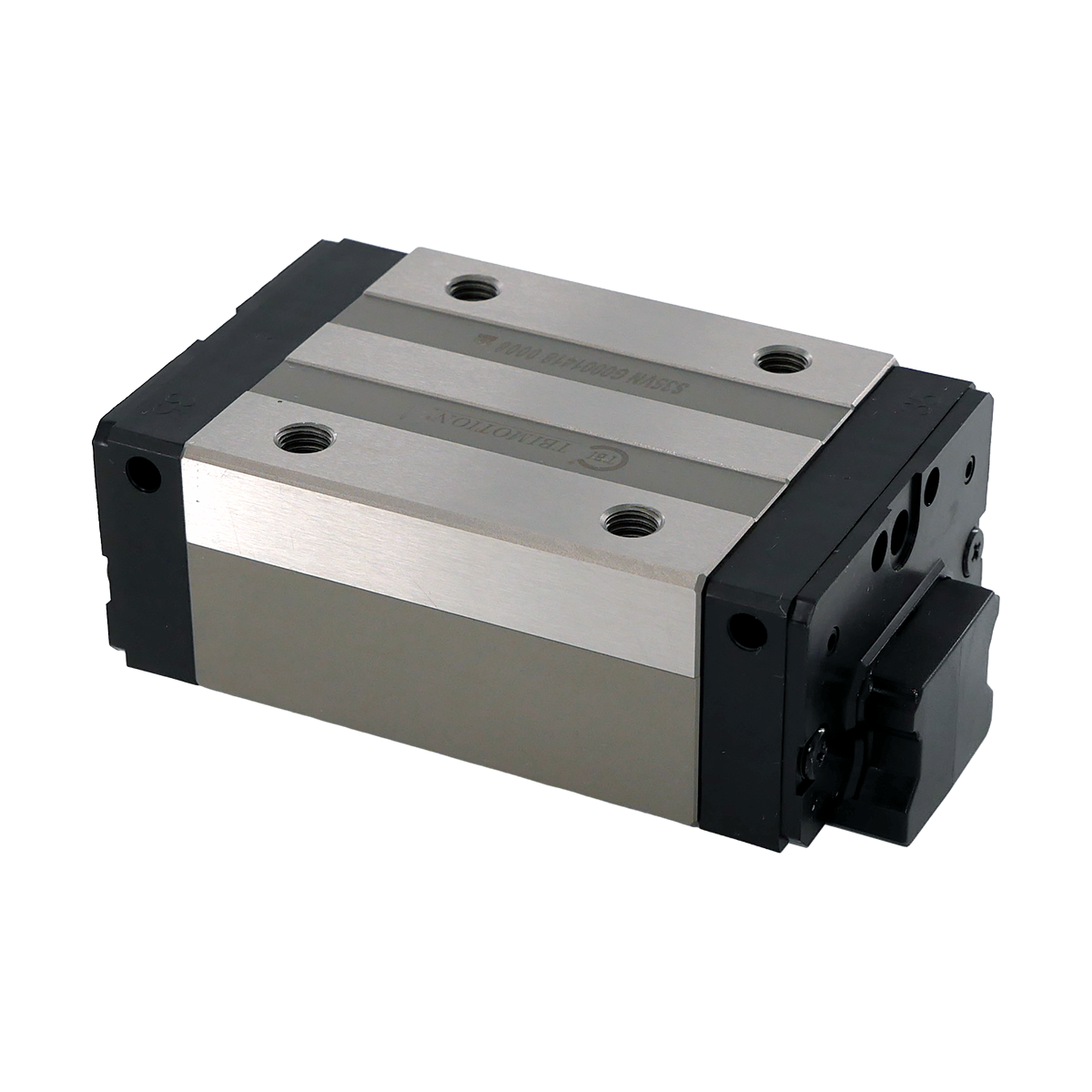

TBI's high-quality linear guides deliver precision, durability, and affordability in one single package. TBI-TRx35 Blocks are matched for the 34mm size TBI-TR35 Rail series. Low friction resistance allows for high accuracy and speed, while several preload options are available for increased rigidity and performance. TBI-TRH35 (high-assembly) Blocks are ideal for dynamic loads up to 65.38 kN and static loads up to 120.36 kN, while TBI-TRS35 (low-assembly) Blocks are suited for dynamic loads up to 49.92 kN and static loads up to 81.85 kN. All standard blocks come with a bottom seal and double lip end seals, and are typically in stock in Anaheim, CA. Compatible TBI-TR35 Rails are sold separately.

  • For Rail Width: 34mm
  • Block Width: 70-100mm
  • Assembly Height: 48-55mm
  • Dynamic Load: Up to 65.38 kN
  • Static Load: Up to 120.36 kN
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More
Item Fabrication DimensionBlock Dimension (mm)Load Capacities (kN)Static Moment (Nm) Price (USD) Add to Cart

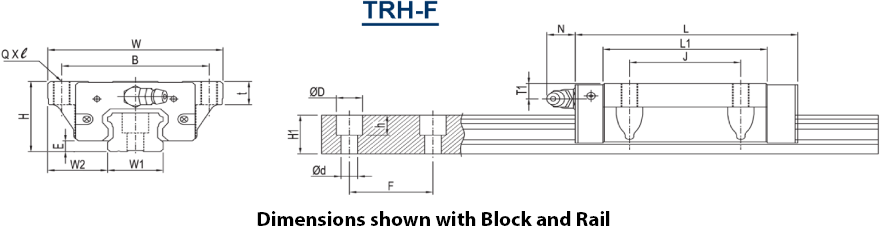

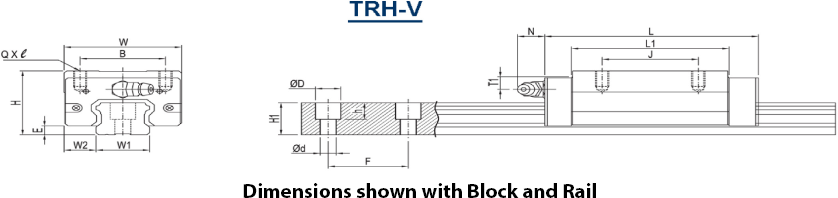

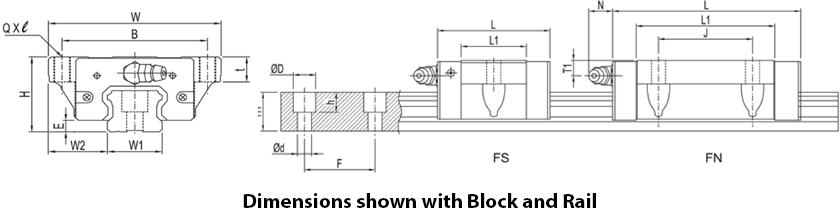

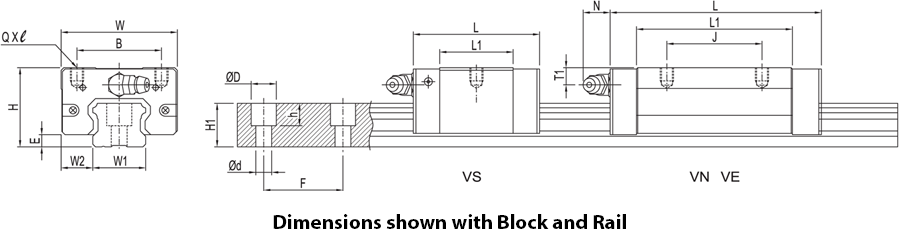

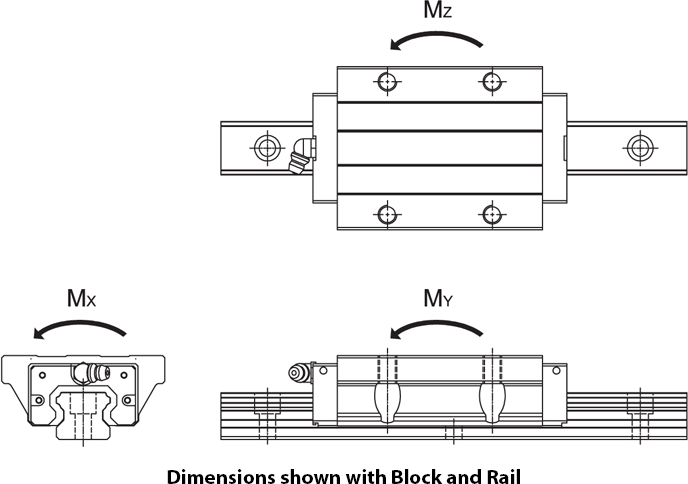

H W2 E W B J L L1 QxL N T C C0 Mx My Mz
Sort by Name TBI-TRH35FN-N-Z0 H 48 W2 33 E 7.5 W 100 B 82 J 62 L 109 L1 79 QxL M10x15 N 14 T 15 C 49.9 C0 81.8 Mx 1399.62 My 1040.19 Mz 1040.19 N/A Call Us
Sort by Name TBI-TRH35VN-N-Z0 H 55 W2 18 E 7.5 W 70 B 50 J 50 L 109 L1 79 QxL M8x10 N 14 T 15 C 49.9 C0 81.8 Mx 1400.12 My 1040.19 Mz 1040.19 N/A Call Us
Sort by Name TBI-TRH35VE-N-Z0 H 55 W2 18 E 7.5 W 70 B 50 J 72 L 152 L1 123 QxL M8x10 N 14 T 15 C 65.4 C0 120.4 Mx 2058.27 My 2294.53 Mz 2294.53 Price (USD) $190.00
Sort by Name TBI-TRH35FE-N-Z0 H 48 W2 33 E 7.5 W 100 B 82 J 62 L 152 L1 123 QxL M10x15 N 14 T 8 C 65.4 C0 120.4 Mx 2058.27 My 2294.53 Mz 2294.53 Price (USD) $195.00
Sort by Name TBI-TRS35VE-N-Z0 H 48 W2 18 E 7.5 W 70 B 50 J 72 L 153 L1 123 QxL M8x8 N 14 T 8 C 65.38 C0 120.36 Mx 2058.27 My 2294.53 Mz 2294.53 Price (USD) $159.00
Sort by Name TBI-TRS35VN-N-Z0 H 48 W2 18 E 7.5 W 70 B 50 J 50 L 108 L1 79 QxL M8x8 N 14 T 8 C 49.9 C0 81.9 Mx 1399.62 My 1040.19 Mz 1040.19 Price (USD) $116.00
