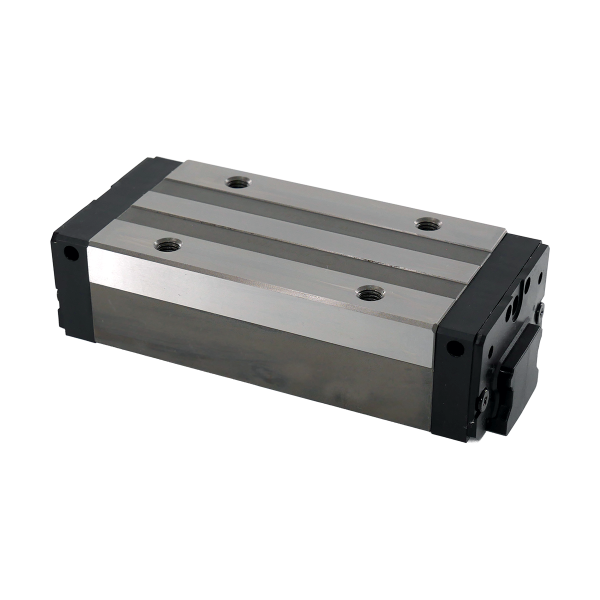

TBI-TRS35VE-N-Z0

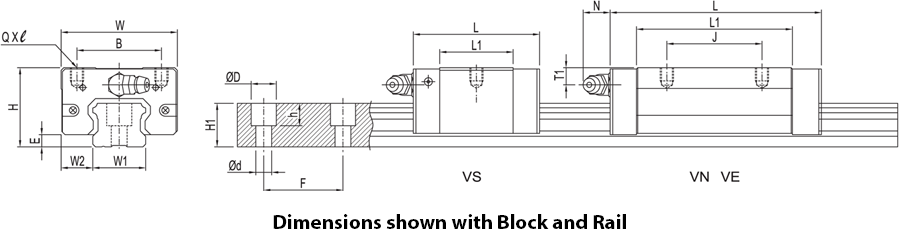

| H | 48 |
|---|---|
| W2 | 18 |
| E | 7.5 |
| W | 70 |
| B | 50 |
| J | 72 |
| L | 153 |
| L1 | 123 |
| QxL | M8x8 |
| N | 14 |
| T | 8 |
| C | 65.3 |
| C0 | 120.3 |
| Mx | 2058.27 |
| My | 2294.53 |
| Mz | 2294.53 |
Interested in large quantity discount?
Product Information

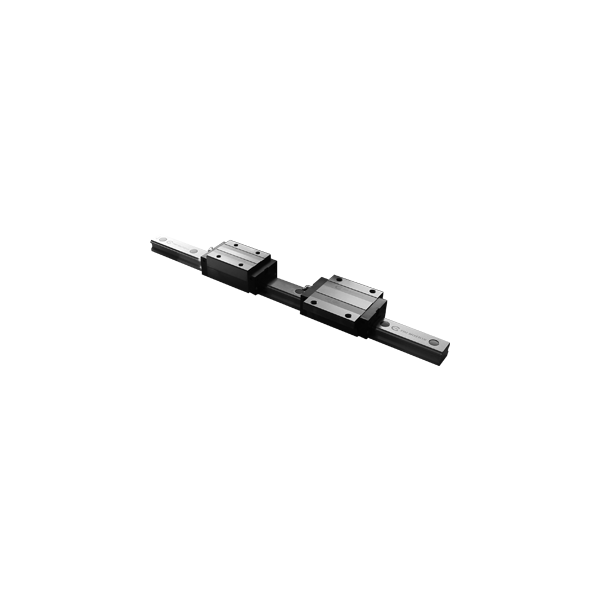

TBI's high-quality linear guides deliver precision, durability, and affordability. Little friction resistance allows for high accuracy and speed, while several preload options are available for increased rigidity and performance. Rails are offered in standard or custom lengths, and are ideal for dynamic loads up to 14,680 lbs (65.3 kN) and static loads up to 27,044 lbs (120.3 kN). All standard blocks come with a bottom seal and double lip end seals. Please contact us for more information. Rails sold separately: TBI-TR35 Rails
- Size: Fits 34mm Linear Guide Rail (TBI-TR35 Rails Series)
- Dynamic Load: Up to 14,680 lbs (65.3 kN)
- Static Load: Up to 27,044 lbs (120.3 kN)
- End-Seal Options: Standard or Reinforced
- Pre-Load: Clearance, Standard, or Light
