LS500-12-H-B-4M-B

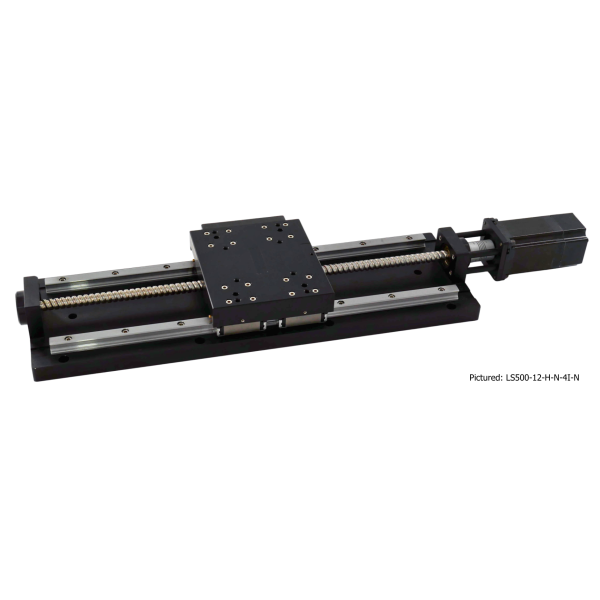

The LS500 Series is a Linear Stage that is a comprised of heavy duty linear guides with hardened rails and precision bearing blocks, a precision rolled lead screw, and a zero-backlash nut. This series is ideal for medium to heavy-duty application up to 225 pounds, with accuracy requirements within 0.003" per foot, and speed ranges up to 12 inches per second. American Made - designed and built in the USA! The LS500 series is an economical package with a low-cost base price (includes a 12 inch travel, no options selected) available in x and xy configurations. The LS500 series is available with Open-Loop or Closed- Loop (assembled with encoders), Homing and End Limit switch options, as well as a variety of lead screw, stepper motor, and encoder choices, with travel length up to 18 inches. Should your application require a larger load, contact an applications engineer to discuss customization options.

Lead time varies depending on motor stock. Tables purchased without a motor are typically 3 days.
Contact Customer Service for specific lead time information.

• Travel Options: 12 or 18 Inches
• Accuracy: 0.003 in/ft
• Speed: Up to 12 in/sec
• Supported Rails, Low-Profile Design
• Heavy Duty Applications, Up to 225 lbs.
• Motor and Encoder and Cable Options
• One and two-axis configurations (see Ordering Information for full part number)
