MBDC020-024031
| Input Type | DC |
|---|---|
| Input Range | 8-24VDC |
| Max Power (W) | 36 |
| Peak Current (A) | 3 |
Interested in large quantity discount?
Product Information

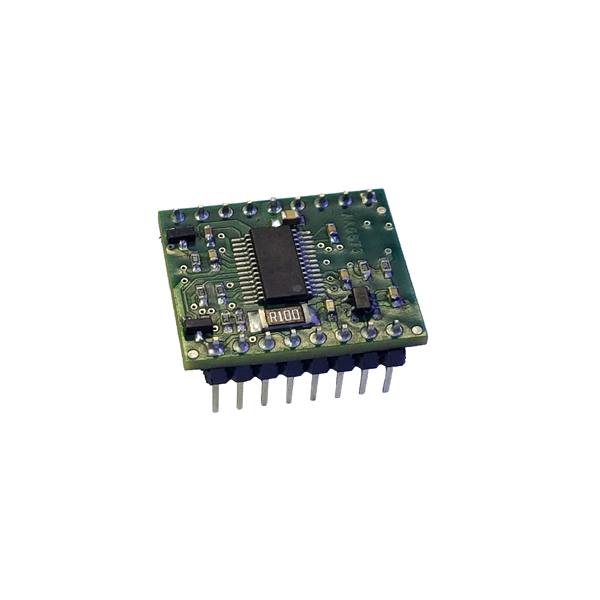

The MBDC020-024031 driver is designed to drive DC Brush motors at currents of up to 3A (peak) and 24V. The driver operates in the basic open loop configuration. The driver is protected against over current (cycle-by-cyle) and under voltage. When an error occurs, a fault output is turned on to notify the user. An external voltage (0.75-4VDC) is used to control the speed of the motor. The direction of the motor can be preset by the direction control input. The freewheel input overrides all other inputs into the driver. With two connector arrays arranged in a 2.54 mm pattern, it allows easy integration and connectivity to the MDC020-EVALBOARD or the OEM-side mother board.
- Open Loop Operation
- 8 - 24VDC Voltage Range
- 0.75V to 4V External Voltage Speed Control
- 2-Quadrant Operation
- Short Circuit Protection
- Maximum Current Limit at 3.0 Amps (peak)
- Freewheel and Direction Input
- TTL-CMOS Compatible Inputs
- Easy Connectivity/Integration into Motherboard
.png)
.png)
.png)
