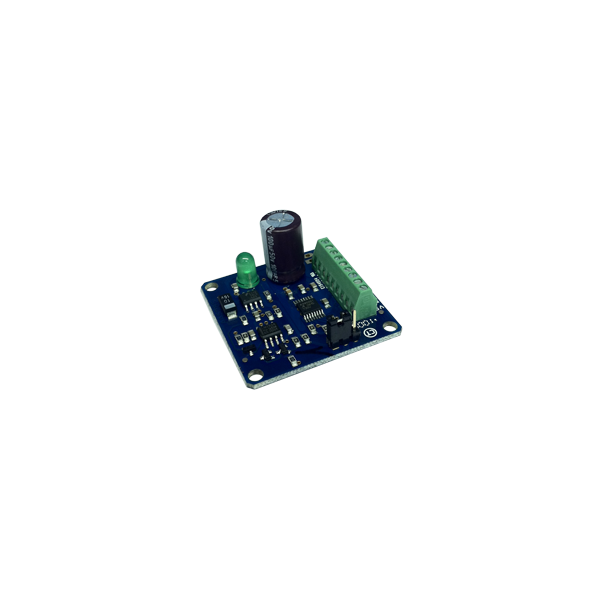

MBDC050-024031
| Input Type | DC |
|---|---|
| Input Range | 8-35VDC |
| Max Power (W) | 35 |
| Peak Current (A) | 3 |
Interested in large quantity discount?
Product Information
The MBDC050-024031 driver is designed to drive DC brush motors at peak currents of up to 3.0A and 35V. An optional external potentiometer (10K) or external voltage (0.5-5VDC) can be used to control the speed as well. The direction of the motor can be preset by the direction control input. To disable energy from the motor, their is a Freewheel input that can be grounded.
- Current Limit set at 3.0 Amps
- External Potentiometer Speed Control
- 0.5V to 5V External Voltage Speed Control
- 2-Quadrant Operation
- Open-Loop Velocity Mode
- Cycle by Cycle Short Circuit Protection
- Requires 8 - 35VDC
- Freewheel and Direction Inputs
- TTL-CMOS Compatible Inputs
- Compact Size (1.50" X 1.50" x 0.712")
- Screw type Terminal Block
