MBDC050-024031

MBDC050-024031

MBDC050-024031-120V

MBDC050-024031-120V

MBDC050-012031-120V

1pc Price:
$97.00
Quantity Discount
  • Buy 10 for $94.63 each and save 2%
  • Buy 25 for $90.66 each and save 7%
  • Buy 50 for $87.71 each and save 10%
  • Buy 100 for $84.94 each and save 12%
Inventory:
8
More Information
Input Type VAC
Input Range 85-135VAC
Max Power (W) 18
Peak Current (A) 3
Interested in large quantity discount?

Product Information

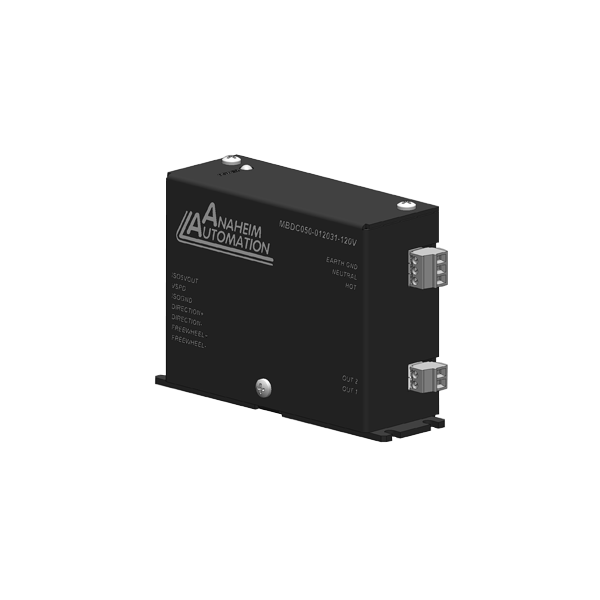

The MBDC050-012031-120V driver is designed to drive DC brush motors at peak currents of up to 3.0A and 18W. The MBDC050-012031-120V is a compact, low profile package meant to be used where space is limited but performance is expected and eliminates the need for an external power supply. The driver has a motor bus voltage of 12V. An external potentiometer (10K) or external voltage (0.5-5VDC) can be used to control the speed. The direction of the motor can be preset by the direction control input. To disable energy from the motor, there is a Freewheel input that can enabled by allowing current through the input opto-diode.

  • Fixed Current Limit Set at 3.0 Amps with an output power up to 18W
  • 0.5V to 5V External Voltage Speed Control
  • 2-Quadrant Operation
  • Open-Loop Velocity Mode
  • 12VDC Motor Bus
  • Requires 85-135 VAC Input
  • Freewheel and Direction Inputs
  • Cycle by Cycle Short Circuit Protection
  • Compact Size (4.73in X 3.19in X 1.54in)
  • Screw Type Terminal Block

User Manual (PDF)

Spec Sheet (PDF)
