MBDC050-050301
| Input Type | DC |
|---|---|
| Input Range | 20-50VDC |
| Max Power (W) | 500 |
| Peak Current (A) | 30 |
Interested in large quantity discount?
Product Information

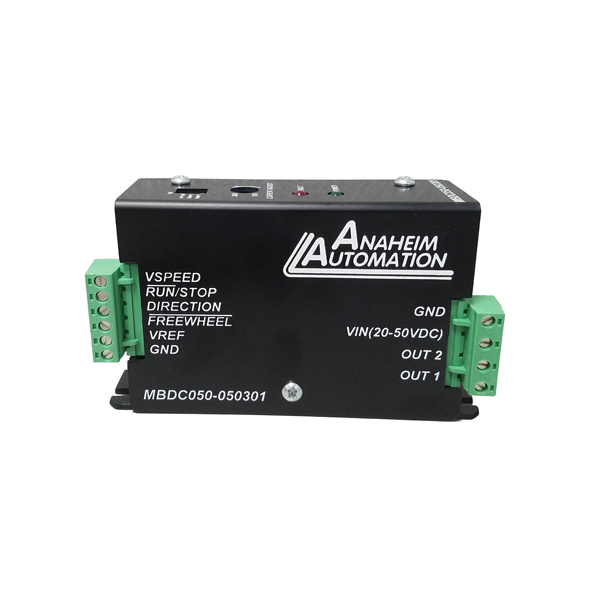

The MBDC050-050301 is a DC Speed Controller designed to drive Brush DC Motors at currents up to 30A peak with an input voltage range of 20-50VDC. An internal potentiometer is used to set the peak motor current limit between 10.0-30.0A, and an external DC power supply ranging from 0 to 5V can be applied to vary the speed of the motor. The direction of the motor can be preset by the direction control input. When using the run/stop input, there are three ramp-up profiles from stand-still to select from. The run/stop input will override all other inputs into the driver. This controller features protection from over-current and under-voltage. The fault protection is set for a cycle-by-cycle motor turn-off.
- Maximum Current Limit Setting from 10.0-30.0 Amps
- Vary Speed Using an External 0-5VDC Power Supply
- 2-Quadrant Operation
- Open-Loop Velocity Mode
- Cycle-by-Cycle Over Current Protection
- Requires 20-50VDC Input
- Run/Stop, Freewheel and Direction Inputs
- Selectable Ramp Up
- TTL-CMOS Compatible Inputs
.png)
.png)
.png)
