MBDCKB1-120081

1pc Price:
$132.00
Quantity Discount
  • Buy 10 for $126.49 each and save 4%
  • Buy 25 for $121.18 each and save 8%
  • Buy 50 for $117.24 each and save 11%
  • Buy 100 for $113.54 each and save 14%
Inventory:
14
More Information
Input Type VAC
Input Range 85-135VAC
Max Power (W) 400
Peak Current (A) 8
Interested in large quantity discount?

Product Information

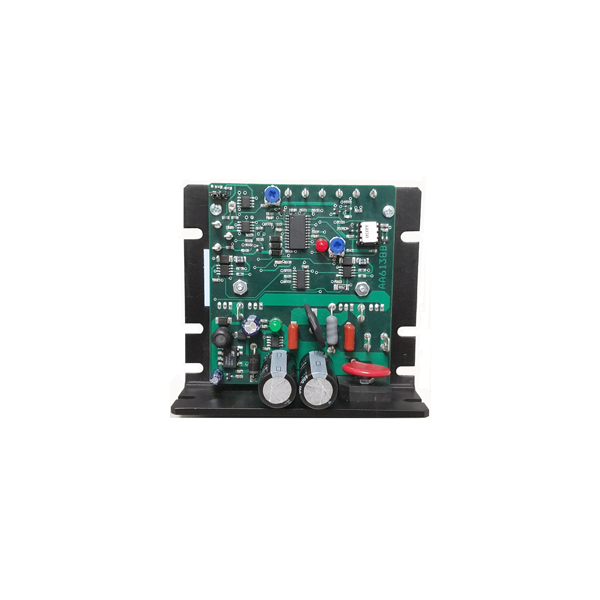

The MBDCKB1-120081 driver is designed to drive DC Brush motors at currents of up to 8A (peak) and 90-180V. The driver is protected against over-current (cycle-by-cyle) and under-voltage. When an error occurs, a fault light is turned on to notify the user. Internal potentiometers allow the user to control the maximum phase current allowed into the motor, as well as ramp-up timing. An external potentiometer (10K) is used to control the speed as well. The direction of the motor can be preset by the direction control input. Other inputs to the drive include a run/stop and a motor enable input. When in use, the run/stop input overrides all other inputs into the driver.

  • Maximum Current Limit from 1.0-8.0 Amps (peak)
  • External 10K Potentiometer Speed Control
  • 2-Quadrant Operation
  • Short-Circuit Protection
  • Requires 85-135 VAC
  • Brake, Disable and Direction Inputs
  • Jumper Selectable Setting for 90-170VDC Motors
  • Compact Size (4.3"x3.84"x1.77")
  • Dual Mounting Option

User Manual (PDF)

Spec Sheet (PDF)
