PSRSP-150-24V-6.3A

PSRSP-150-24V-6.3A

PSRSP-200-24V-8.4A

PSRSP-200-24V-8.4A

PSRSP-150-48V-3.2A

1pc Price:
$79.00
Quantity Discount
  • Buy 10 for $77.98 each and save 1%
  • Buy 25 for $73.66 each and save 7%
  • Buy 50 for $72.65 each and save 8%
  • Buy 100 for $71.67 each and save 9%
Inventory:
More Information
Input Voltage (VAC) 85-264VAC, Single Phase, 47-63Hz
Output Voltage (V) 48
Total Power (W) 150
Lead Time Typ 20 Days
Interested in large quantity discount?

Product Information

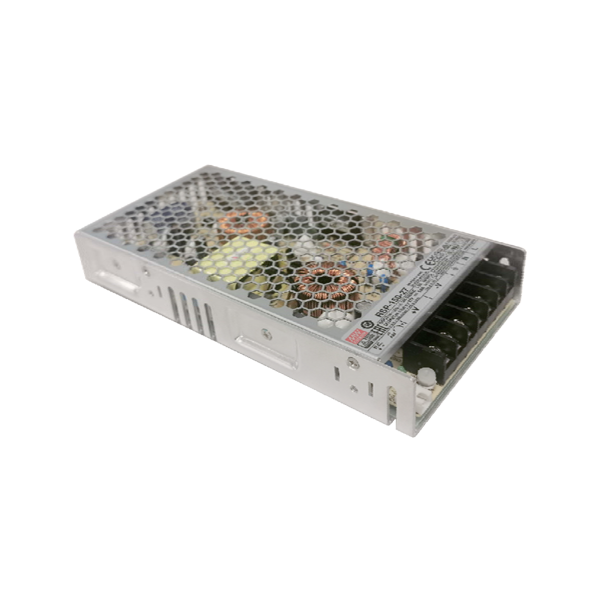

Anaheim Automation’s PSRSP 150 series offers versatility and functionality. This power supply provides up to 150 Watts of power at 48VDC with a universal input range of 85-264VAC. Integrated into the power supply is a PFC function, PF>0.93 as well as a built-in constant current limiting circuit, so the unit draws less current and provides up to 90% efficiency. Each power supply is equipped with an LED indicator for power on in addition to short-circuit, overload, over voltage, and over temperature protection features; the option of remote ON-OFF control is also available. In addition to flexibility and cost-efficiency, the PSRSP series offers high reliability and a long lifetime.

  • Universal AC Input/Full Range
  • Built-in Active PFC Function, PF>0.93
  • High Efficiency Up to 90%
  • Cooling by Free Air Convection
  • Built-in Remote ON-OFF Control
  • LED Indicator for Power On
  • 100% Full Load Burn-in Test
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Fixed Switching Frequency at PFC:67KHz PWM:67KHz
  • CE Certified

Spec Sheet (PDF)
