PSRSP-150-48V-3.2A

PSRSP-150-48V-3.2A

PSRSP-200-48V-4.2A

PSRSP-200-48V-4.2A

PSRSP-200-24V-8.4A

1pc Price:
$91.00
Quantity Discount
  • Buy 10 for $89.09 each and save 2%
  • Buy 25 for $84.24 each and save 7%
  • Buy 50 for $83.09 each and save 9%
  • Buy 100 for $81.96 each and save 10%
Inventory:
More Information
Input Voltage (VAC) 88-264VAC, Single Phase, 47-63Hz
Output Voltage (V) 24
Total Power (W) 200
Lead Time Typ 20 Days
Interested in large quantity discount?

Product Information

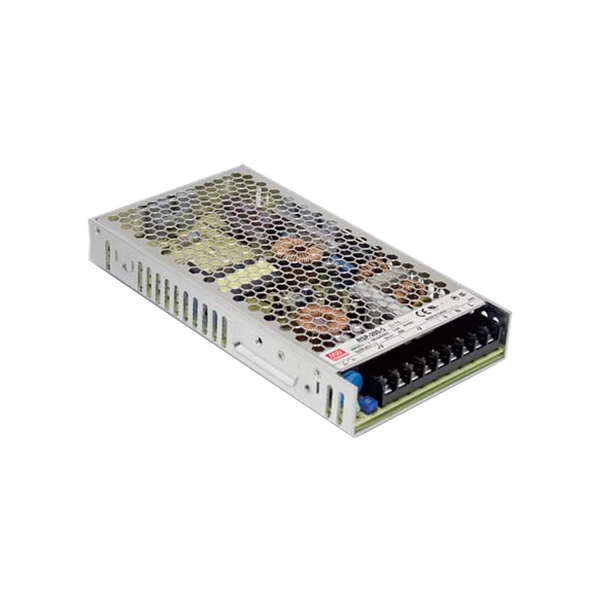

Anaheim Automation’s PSRSP 200 series offers versatility and functionality. These power supplies provide up to 200 Watts of power at 24VDC with a universal input range of 88-264VAC. Integrated into the power supply is a PFC function, PF>0.95 as well as a built-in constant current limiting circuit, so the unit draws less current and provides up to 90% efficiency. Each power supply is equipped with an LED indicator for power on in addition to short-circuit, overload, over voltage, and over temperature protection features. In addition to flexibility and cost-efficiency, the PSRSP series offers high reliability and a long lifetime.

  • Universal AC Input/Full Range
  • Built-in Active PFC Function, PF>0.95
  • Short Circuit/Overload/Over Voltage/ Over Temperature Protection
  • High Efficiency Up to 90%
  • Cooling by Free Air Convection
  • Fixed Switching Frequency at PFC:100KHz PWM:100KHz
  • LED Indicator for Power On
  • CE Certified

Spec Sheet (PDF)
