TGM25-075-26
TGM25-075-26 | Anaheim Automation, Inc.
Information
.png)

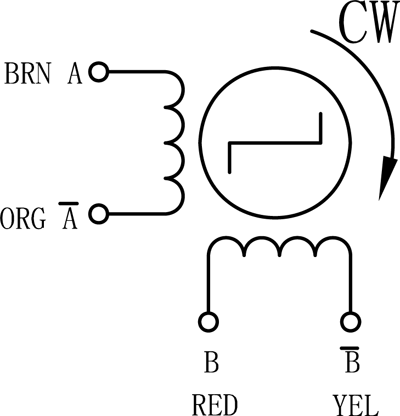

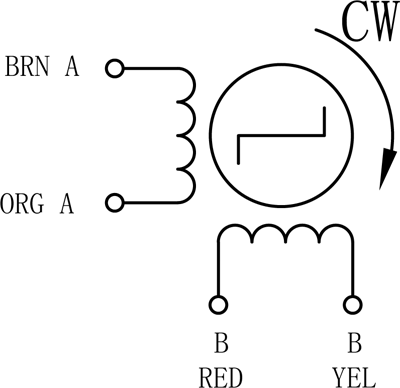

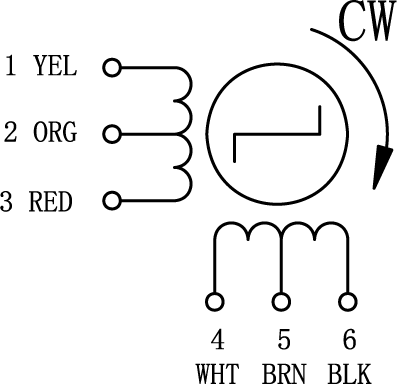

The TGM25 Series are small Permanent Magnet DC gearmotors measuring 25mm or 25.5mm in diameter, and providing up to 566.44 ounce-inches of holding torque. These CE Certified motors come standard with a 7.5° step angle, 5:1, 10:1 or 30:1 gear ratios, and four or six-lead wire connection as standard. Customization is available for larger quantities.
*Note: Not all motors are stock items. Minimum purchases may apply. Contact Anaheim Automation for more details.
- Permanent Magnet Stepper Gearmotor
- High Torque in a Small Package at a Low Cost
- Up to 4000 g-cm Holding Torque (566.44 oz-in)
- 5:1, 10:1 and 30:1 Gear Ratios Available

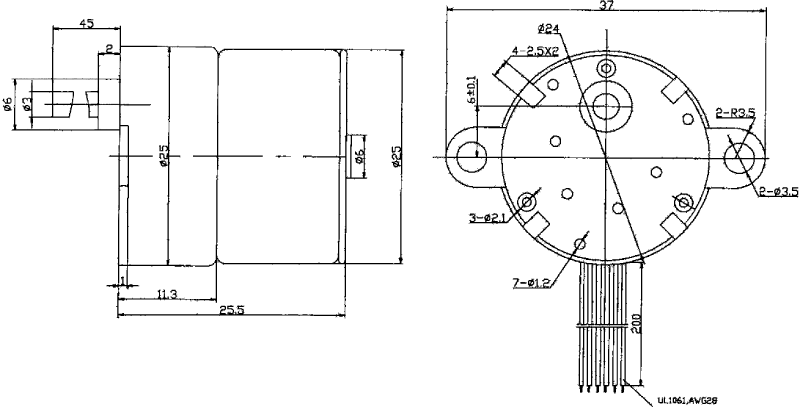

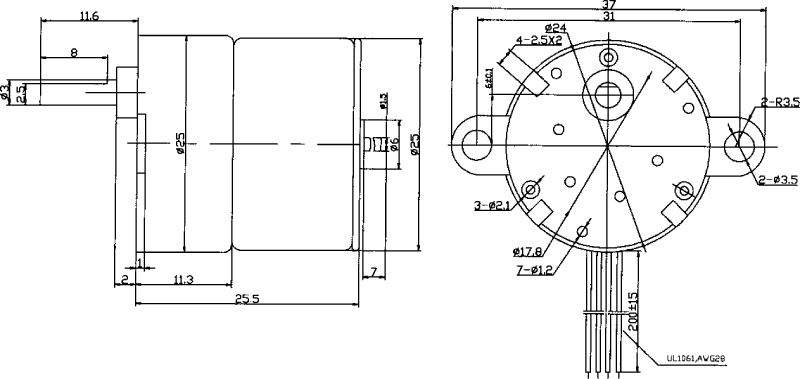

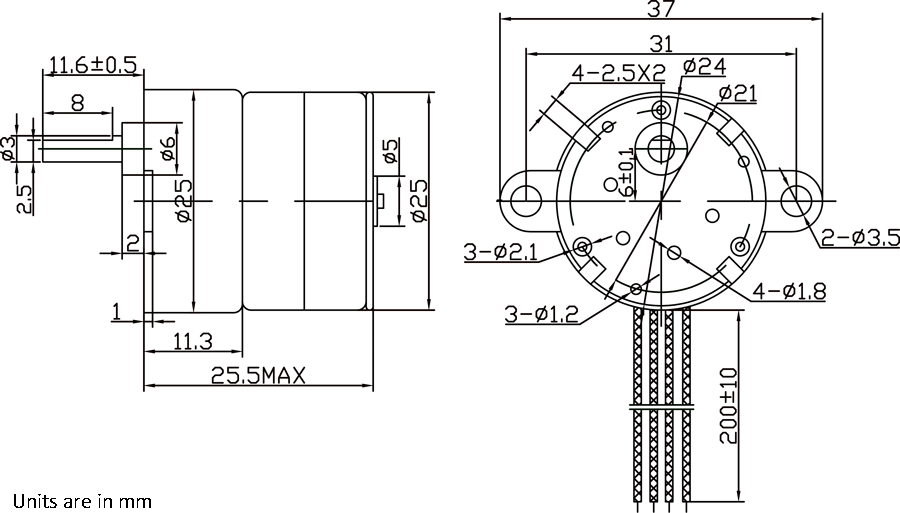

- 25 mm or 25.5 mm Diameter
- CE Certified and RoHS Compliant
| Item | Minimum Purchase Quantity | Frame Size (mm) | Holding Torque (g-cm) | Bipolar Series RMS Current (A) | Bipolar Series Resistance Per Phase (ohm) | Bipolar Series RMS Voltage (V) | # of Lead Wires | Weight (lbs) | Lead Time | 1pc Price (USD) | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TGM25-075-26-3V-052A-30R-LW4 | 25 | 25.5 | 4000 | 0.52 | 5 | 2.6 | 4 | 0.1 | 1 in stock | N/A | Call Us Contact Us |
| TGM25-075-26-3V-047A-10R-LW4 | 25 | 25 | 1400 | 0.47 | 5.96 | 2.8 | 4 | 0.1 | 100 in stock | $45.00 | |
| TGM25-075-26-13V-011A-30R-LW6 | 25 | 25.5 | 4000 | 0.11 | 120 | 13.3 | 6 | 0.1 | 38 in stock | $45.00 | |
| TGM25-075-26-3V-052A-5R-LW4 | 25 | 25.5 | 450 | 0.52 | 5 | 2.6 | 4 | 0.1 | 61 in stock | $45.00 |
Additional Information
