TBI-BSC-SU-FF12

TBI-BSC-SU-FF12

TBI-BSC-SU-FF20

TBI-BSC-SU-FF20

TBI-BSC-SU-FF15

1pc Price:
$40.00
Quantity Discount
  • Buy 10 for $39.54 each and save 1%
  • Buy 25 for $38.44 each and save 4%
  • Buy 50 for $37.92 each and save 5%
  • Buy 100 for $37.40 each and save 7%
Inventory:
1
More Information
d1 15
L 17
B 52
H 9
F 8
Dg6 40
A 63
PCD 50
X 5.5
Y 9.5
Z 5.5
Static Radial Load Ca (kgf) 570
Dynamic Radial Load Coa (kgf) 289
Maximum Speed (rpm) 13300
Interested in large quantity discount?

Product Information

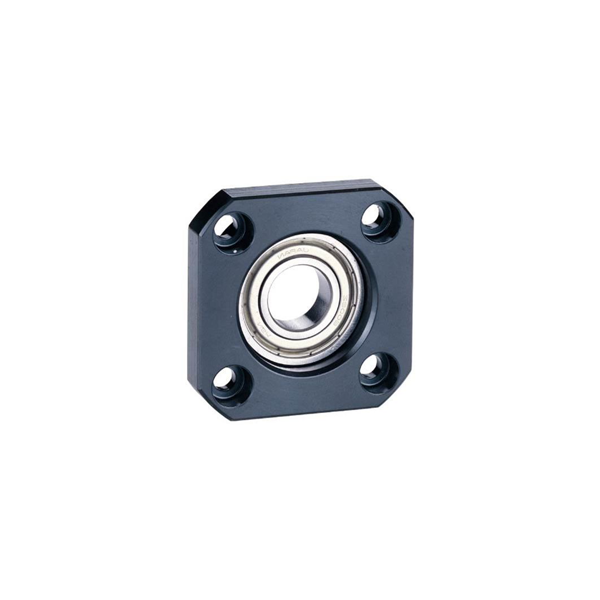

The Round-Type FF Fixed-Side Support Unit Series are available to fit input shaft diameters ranging from 8mm to 30mm. These support units are compact in size and allow for easy installation. The supported-side (also referred to as floated side) support units come with a bearing and snap ring to securely mount the finished ball screw shaft to the support unit. (Note: The bearing is not fixed to a position inside the supported-side support unit). FF support units come equipped with a single-row deep-groove ball bearings. These support units have a Static Radial Load Ca up to 1989 kgf, Dynamic Radial Load Coa up to 1152 kgf, and can handle speeds up to 28,000RPM (model dependent).

We can end-machine any Anaheim Automation/TBI Ball Screw to fit our Support Units per the Dimensions shown on this page. Custom end-machining is also available, no MOQ required. Contact us for a quote!

  • Supported-Side Round Type
  • Ball Screw Diameter: 10mm to 40mm
  • Input Shaft Diameter: 8mm to 30mm
  • Static Radial Load Ca: Up to 1989 kgf
  • Dynamic Radial Load Coa: Up to 1152 kgf
  • Maximum Speed: Up to 16,800RPM
  • Applicable Screw Accuracy: C3, C5, or C7
  • Black Oxide Surface Treatment

Spec Sheet (PDF)
