TBI-BSC-SU-FF20
| d1 | 20 |
|---|---|
| L | 20 |
| B | 68 |
| H | 11 |
| F | 9 |
| Dg6 | 57 |
| A | 85 |
| PCD | 70 |
| X | 6.6 |
| Y | 11 |
| Z | 6.5 |
| Static Radial Load Ca (kgf) | 1300 |
| Dynamic Radial Load Coa (kgf) | 702 |
| Maximum Speed (rpm) | 9100 |
Interested in large quantity discount?
Product Information

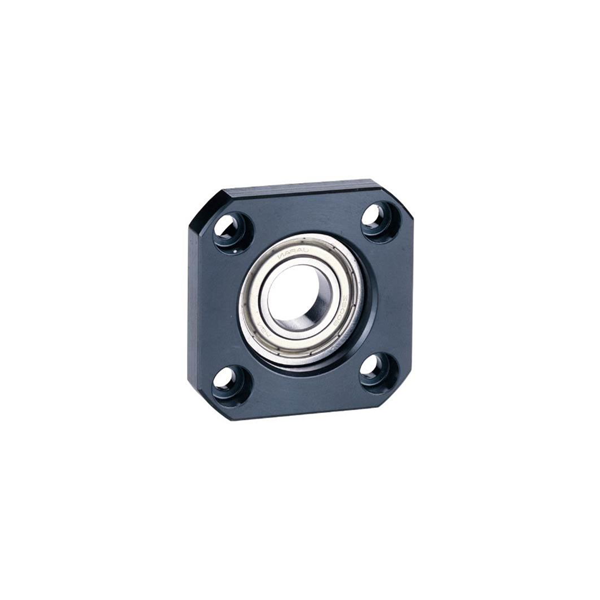

The Round-Type FF Fixed-Side Support Unit Series are available to fit input shaft diameters ranging from 8mm to 30mm. These support units are compact in size and allow for easy installation. The supported-side (also referred to as floated side) support units come with a bearing and snap ring to securely mount the finished ball screw shaft to the support unit. (Note: The bearing is not fixed to a position inside the supported-side support unit). FF support units come equipped with a single-row deep-groove ball bearings. These support units have a Static Radial Load Ca up to 1989 kgf, Dynamic Radial Load Coa up to 1152 kgf, and can handle speeds up to 28,000RPM (model dependent).
We can end-machine any Anaheim Automation/TBI Ball Screw to fit our Support Units per the Dimensions shown on this page. Custom end-machining is also available, no MOQ required. Contact us for a quote!
- Supported-Side Round Type
- Ball Screw Diameter: 10mm to 40mm
- Input Shaft Diameter: 8mm to 30mm
- Static Radial Load Ca: Up to 1989 kgf
- Dynamic Radial Load Coa: Up to 1152 kgf
- Maximum Speed: Up to 16,800RPM
- Applicable Screw Accuracy: C3, C5, or C7
- Black Oxide Surface Treatment
