1pc Price:
$66.00
Quantity Discount
  • Buy 10 for $63.90 each and save 3%
  • Buy 25 for $62.13 each and save 6%
  • Buy 50 for $61.28 each and save 7%
  • Buy 100 for $60.45 each and save 8%
Inventory:
2
More Information
d1 25
L 24
B 79
H 14
F 10
Dg6 63
A 98
PCD 80
X 9
Y 14
Z 8.5
Static Radial Load Ca (kgf) 1430
Dynamic Radial Load Coa (kgf) 800
Maximum Speed (rpm) 8400
Interested in large quantity discount?

Product Information

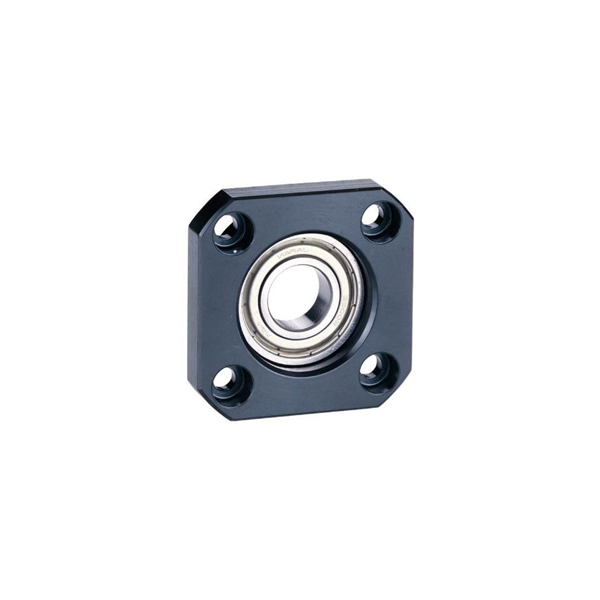

The Round-Type FF Fixed-Side Support Unit Series are available to fit input shaft diameters ranging from 8mm to 30mm. These support units are compact in size and allow for easy installation. The supported-side (also referred to as floated side) support units come with a bearing and snap ring to securely mount the finished ball screw shaft to the support unit. (Note: The bearing is not fixed to a position inside the supported-side support unit). FF support units come equipped with a single-row deep-groove ball bearings. These support units have a Static Radial Load Ca up to 1989 kgf, Dynamic Radial Load Coa up to 1152 kgf, and can handle speeds up to 28,000RPM (model dependent).

We can end-machine any Anaheim Automation/TBI Ball Screw to fit our Support Units per the Dimensions shown on this page. Custom end-machining is also available, no MOQ required. Contact us for a quote!

  • Supported-Side Round Type
  • Ball Screw Diameter: 10mm to 40mm
  • Input Shaft Diameter: 8mm to 30mm
  • Static Radial Load Ca: Up to 1989 kgf
  • Dynamic Radial Load Coa: Up to 1152 kgf
  • Maximum Speed: Up to 16,800RPM
  • Applicable Screw Accuracy: C3, C5, or C7
  • Black Oxide Surface Treatment

Spec Sheet (PDF)
