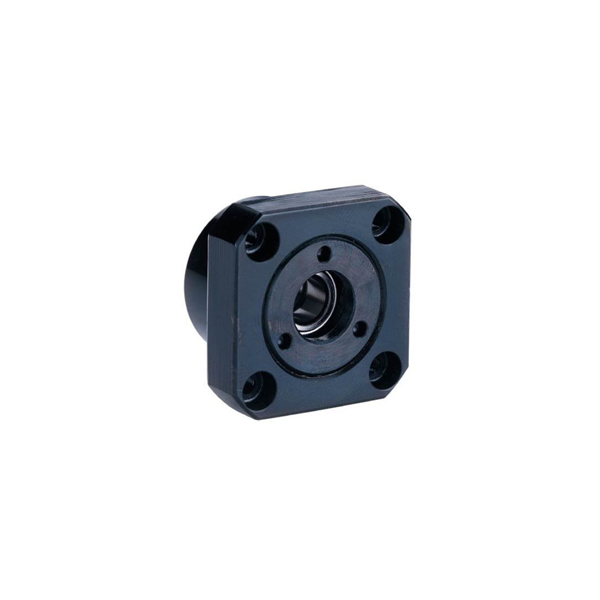

TBI-BSC-SU-FK15
| d1 | 15 |
|---|---|
| L | 32 |
| T1 | 6 |
| L1 | 10 |
| B | 52 |
| H | 15 |
| F | 17 |
| E | 36 |
| Dg6 | 40 |
| A | 63 |
| PCD | 50 |
| X | 5.5 |
| Y | 9.5 |
| Z | 6 |
| Allowable Axial Load (Kgf) | 240 |
| Allowable Static Load (Kgf) | 315.7 |
| Maximum Speed (rpm) | 13300 |
Interested in large quantity discount?
Product Information
The Round-Type FK Fixed-Side Support Unit Series are available to fit input shaft diameters ranging from 8mm to 30mm. These support units are compact in size and allow for easy installation. The fixed-side support units are the driven side of the support unit and ais coupled to the motor using a coupling. These fixed-side support units come with a spacer and lock nut to secure the finished ball screw shaft to the support unit. The bearing inside the support unit is not fixed to a position. All support units come with angular contact bearings which are assembled with the correct preload and amount of lubrication. These support units have an allowable axial load up to 939Kgf, allow static load up to 1,353Kgf, and can handle speeds up to 28,000RPM (model dependent).
We can end-machine any Anaheim Automation/TBI Ball Screw to fit our Support Units per the end Dimensions shown on this page. Custom end-machining is also available, no MOQ required. Contact us for a quote!
- Fixed-Side Round Type
- Ball Screw Diameter: 10mm to 40mm
- Input Shaft Diameter: 8mm to 30mm
- Allowable Axial Load: Up to 939Kgf
- Allowable Static Load: Up to 1353Kgf
- Maximum Speed: Up to 28,000RPM
- Applicable Screw Accuracy: C3, C5, or C7
- Black Oxide Surface Treatment
.png)
.png)
Spec Sheet (PDF)
