TBI-BSC-SU-FK30
| d1 | 30 |
|---|---|
| L | 62 |
| T1 | 12 |
| L1 | 11 |
| B | 93 |
| H | 30 |
| F | 32 |
| E | 61 |
| Dg6 | 75 |
| A | 117 |
| PCD | 95 |
| X | 11 |
| Y | 17.5 |
| Z | 15 |
| Static Axial Load Ca (kgf) | 2856 |
| Dynamic Axial Load K (kgf/μm) | 19.8 |
| Maximum Speed (rpm) | 7000 |
Interested in large quantity discount?
Product Information

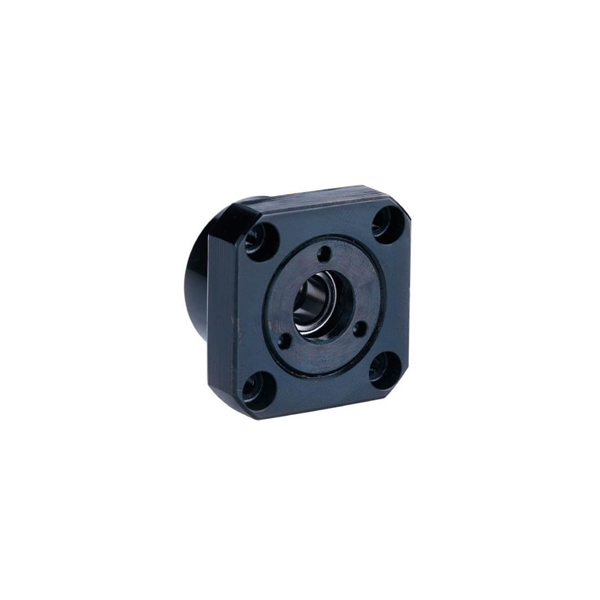

The Round-Type FK Fixed-Side Support Unit Series are available to fit input shaft diameters ranging from 8mm to 30mm. These support units are compact in size and allow for easy installation. The fixed-side support units are the driven side of the support unit and ais coupled to the motor using a coupling. These fixed-side support units come with a spacer and lock nut to secure the finished ball screw shaft to the support unit. The bearing inside the support unit is not fixed to a position. All support units come with angular contact bearings which are assembled with the correct preload and amount of lubrication. These support units have a static axial load of 2856 kgf, dynamic axial load up to 19.8 kgf/μm, and can handle speeds up to 28,000RPM (model dependent).
We can end-machine any Anaheim Automation/TBI Ball Screw to fit our Support Units per the end Dimensions shown on this page. Custom end-machining is also available, no MOQ required. Contact us for a quote!
- Fixed-Side Round Type
- Ball Screw Diameter: 10mm to 40mm
- Input Shaft Diameter: 8mm to 30mm
- Static Axial Load: Up to 2856 kgf
- Dynamic Axial Load: Up to 19.8 kgf/μm
- Maximum Speed: Up to 28,000RPM
- Applicable Screw Accuracy: C3, C5, or C7
- Black Oxide Surface Treatment
.png)
.png)
Spec Sheet (PDF)
