TBI-TR20N-2300-10-10
| W1 | 20 |
|---|---|
| H1 | 16.5 |
| F | 60 |
| d x D x h | 6 x 9.5 x 8.5 |
| Rail Length | 2300 |
| Rail Weight (lbs) | 11.57 |
| Lead Time | Typ 1-3 Days |
Interested in large quantity discount?
Product Information

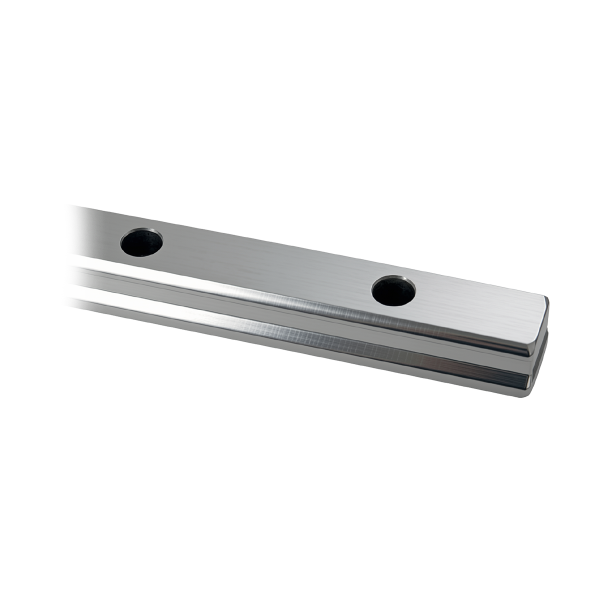

TBI-TR20 Rails are matched for TBI-TRx20 Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 2300mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information. Bearing Blocks sold separately.
- Size: 23mm Linear Guide Rail
- Continuous Rail Lengths Up to 2300mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
