TBI-TR25N-0900-30-30
| W1 | 23 |
|---|---|
| H1 | 20 |
| F | 60 |
| d x D x h | 7 x 11 x 9 |
| Rail Length | 900 |
| Rail Weight (lbs) | 6.29 |
| Lead Time | Typ 1-3 Days |
Interested in large quantity discount?
Product Information

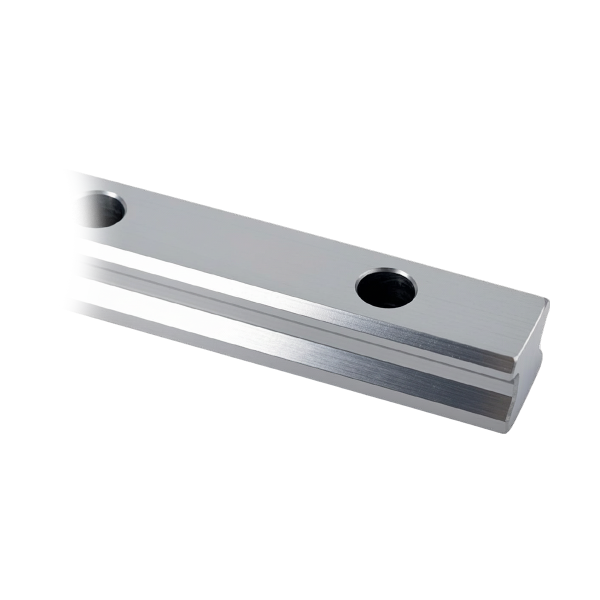

TBI-TR25 Rails are matched for TBI-TRx25 Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 900mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information. Bearing Blocks sold separately.
***NOTE: TBI-TRH25VL-N-Z0 and TBI-TRH25FL-N-Z0 blocks are LTSOH (Limited to Stock on Hand).
- Size: 23mm Linear Guide Rail
- Continuous Rail Lengths Up to 900mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
