TBI-TR45N-3705-15-15
| W1 | 45 |
|---|---|
| H1 | 32 |
| F | 105 |
| d x D x h | 14 x 20 x 17 |
| Rail Length | 3705 |
| Rail Weight (lbs) | 84.96 |
| Lead Time | Typ 1-3 Days |
Interested in large quantity discount?
Product Information

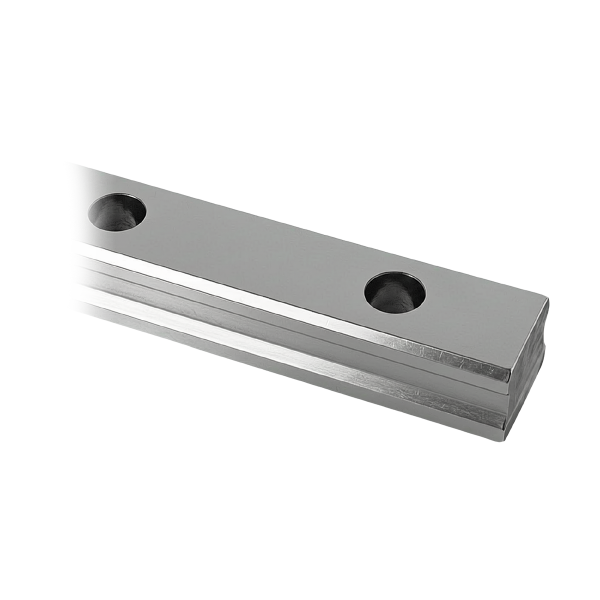

TBI-TR45 Rails are matched for TBI-TRx45 Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 3705mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information. Bearing Blocks sold separately.
- Size: 45mm Linear Guide Rail
- Continuous Rail Lengths Up to 3705mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
