1pc Price:
$283.00
Quantity Discount
  • Buy 10 for $273.86 each and save 3%
  • Buy 25 for $265.92 each and save 6%
  • Buy 50 for $262.12 each and save 7%
  • Buy 100 for $258.43 each and save 9%
Inventory:
More Information

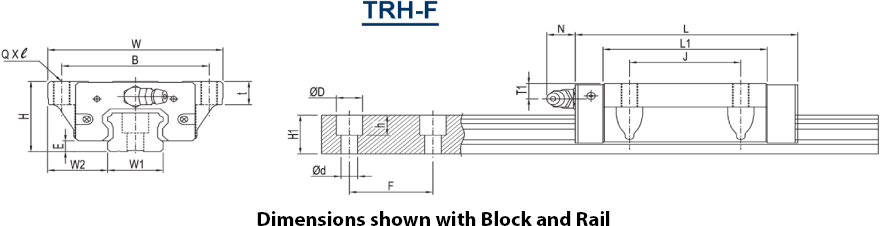

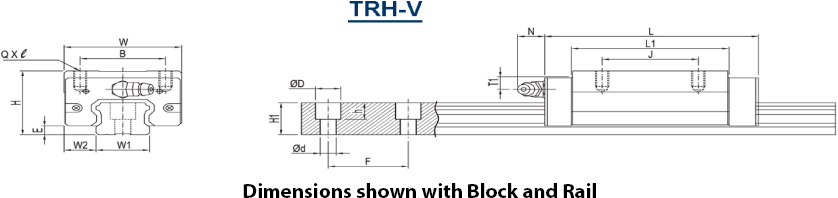

W1 53
H1 44
F 120
d x D x h 16 x 23 x 20
Rail Length 510
Rail Weight (lbs) 18.08
Lead Time Typ 1-3 Days
Interested in large quantity discount?

Product Information

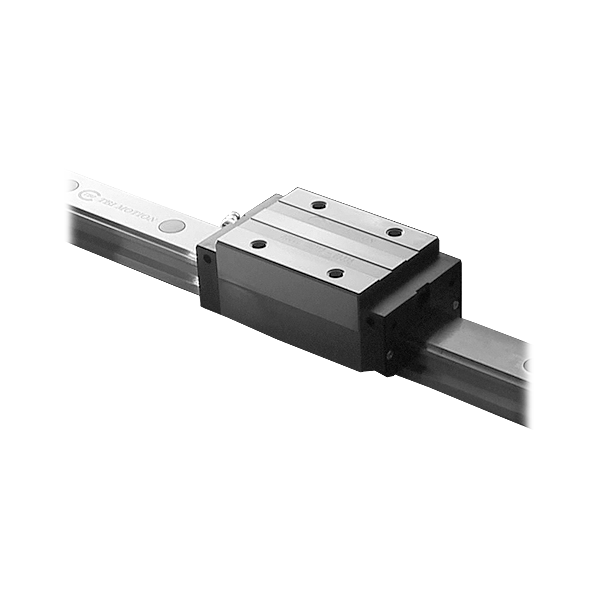

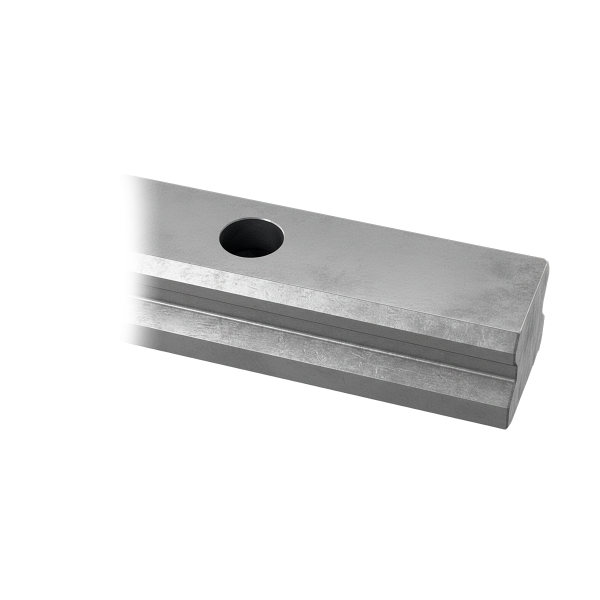

TBI-TR55 Rails are matched for TBI-TRH55 Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information. Bearing Blocks sold separately.

  • Size: 53mm Linear Guide Rail
  • Rail Length: 510mm
  • Custom Rail Sizes Available
  • Matched Bearing Blocks

Spec Sheet (PDF)
