TBI-TR65N-1700-25-25

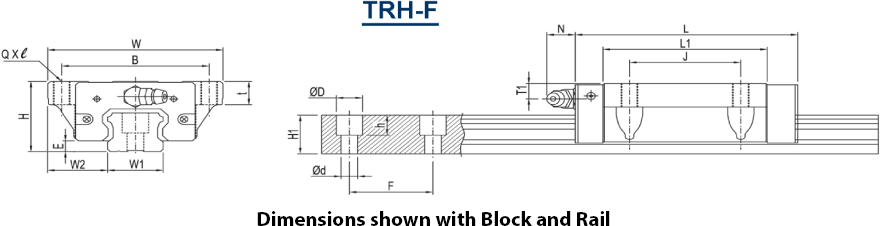

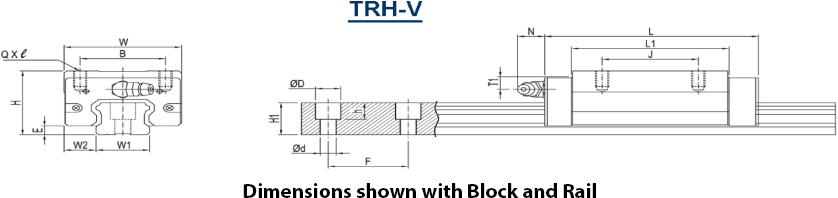

| W1 | 63 |
|---|---|
| H1 | 53 |
| F | 150 |
| d x D x h | 18 x 26 x 22 |
| Rail Length | 1700 |
| Rail Weight (lbs) | 84.48 |
| Lead Time | Typ 1-3 Days |
Interested in large quantity discount?
Product Information

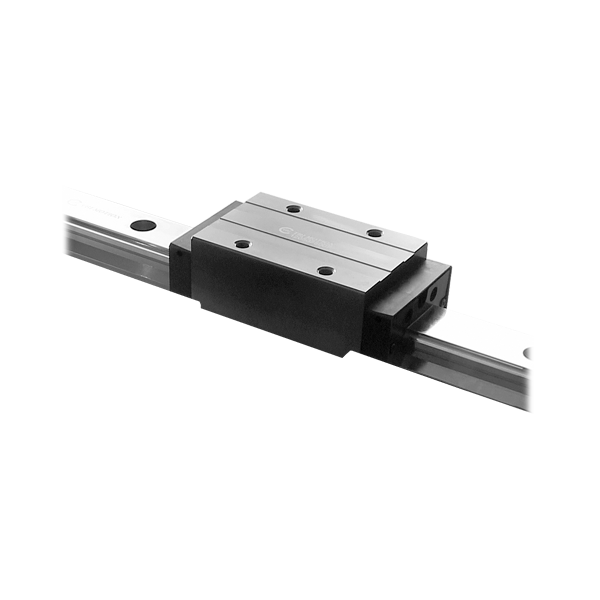

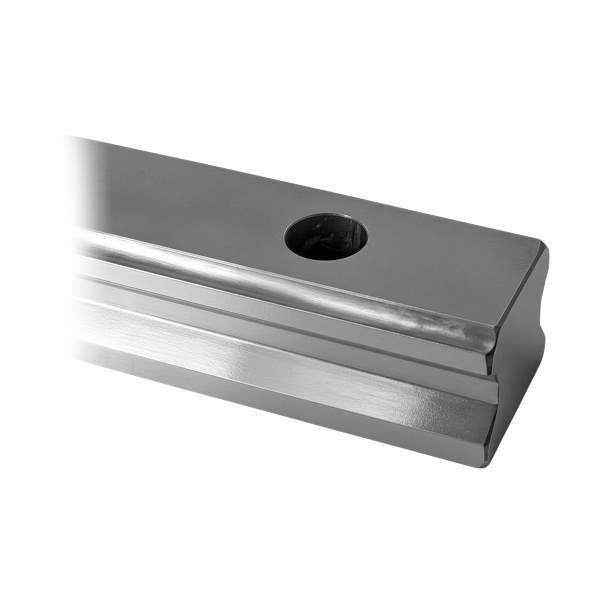

TBI-TR65 Rails are matched for TBI-TRH65 Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 1700mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information. Bearing Blocks sold separately.
- Size: 63mm Linear Guide Rail
- Continuous Rail Lengths Up to 1700mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
Spec Sheet (PDF)
