TBI-TRH65FL-N-Z0

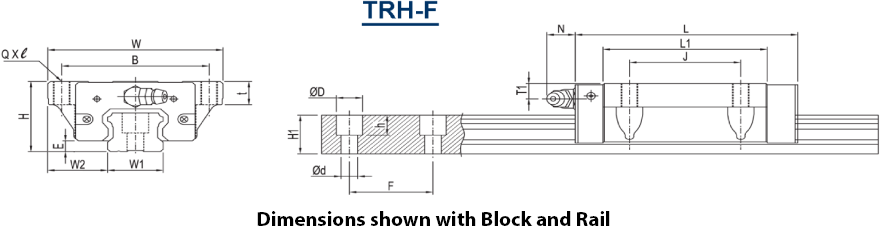

| H | 90 |
|---|---|
| W2 | 53.5 |
| E | 14 |
| W | 170 |
| B | 142 |
| J | 110 |
| L | 197 |
| L1 | 147 |
| QxL | M16x23 |
| N | 12.5 |
| T | 37 |
| C | 220.9 |
| C0 | 308.7 |
| Mx | 9542.6 |
| My | 6823.86 |
| Mz | 6823.86 |
| Lead Time | Typ 45 Days |
Interested in large quantity discount?
Product Information
TBI's high-quality linear guides deliver precision, durability, and affordability. Available in a 65mm size, this sleek, high-quality design is an easy-to-use product. Little friction resistance allows for high accuracy and speed, while several preload options are available for increased rigidity and performance. They are offered in standard or custom lengths, and are ideal for dynamic loads up to 49,660 lbs (220.9 kN) and static loads up to 69,398 lbs (308.7 kN). All standard blocks come with a bottom seal and double lip end seals. Please contact us for more information. Rails sold separately.
- Size: Fits 63mm Linear Guide Rail
- Dynamic Load: Up to 49,660 lbs (220.9 kN)
- Static Load: Up to 69,398 lbs (308.7 kN)
- End-Seal Options: Standard or Reinforced
- Pre-Load: Clearance, Standard, or Light
