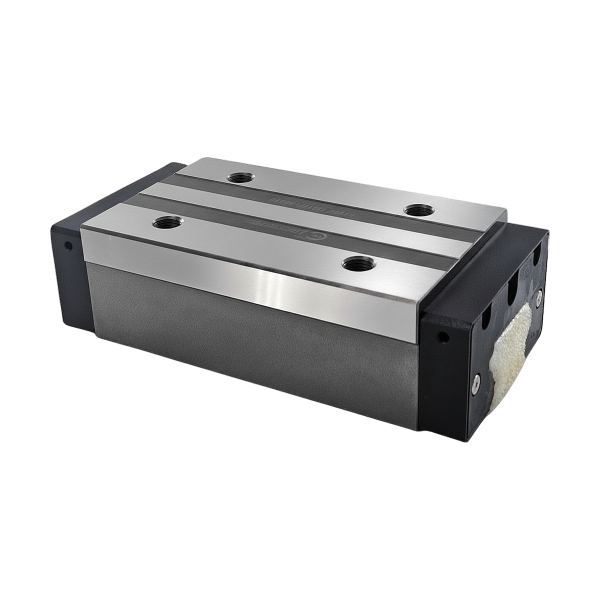

TBI-TRH65VE-N-Z0

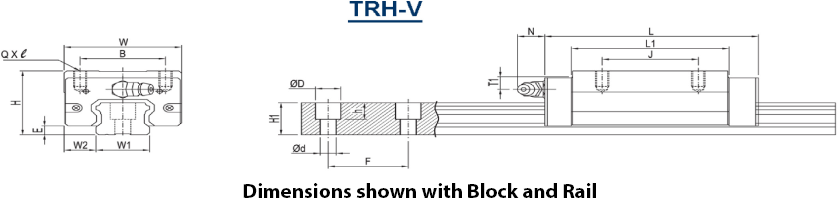

| H | 90 |
|---|---|
| W2 | 31.5 |
| E | 14 |
| W | 126 |
| B | 76 |
| J | 120 |
| L | 256.1 |
| L1 | 206.5 |
| QxL | M16x20 |
| N | 12.5 |
| T | 19.3 |
| C | 273.6 |
| C0 | 419 |
| Mx | 12950.67 |
| My | 12822.86 |
| Mz | 12822.86 |
Interested in large quantity discount?
Product Information

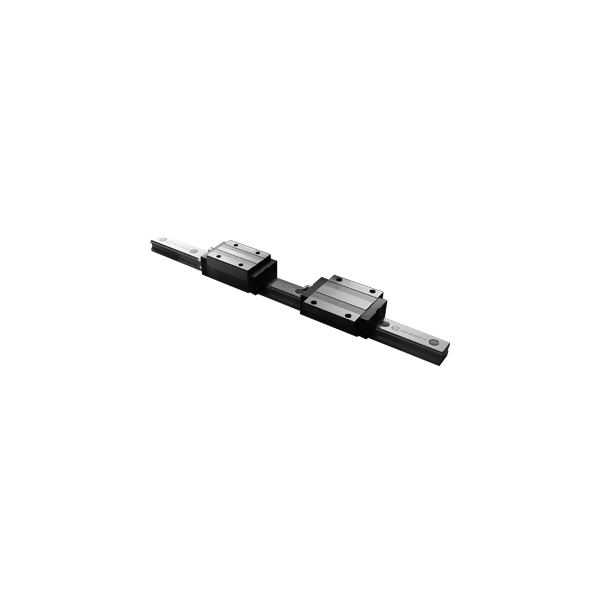

TBI's high-quality linear guides deliver precision, durability, and affordability in one single package! Available in a 65mm size, this sleek, high-quality design incorporates the rail and the block together to provide a convenient, easy-to-use product. Little friction resistance allows for high accuracy and speed, while several preload options are available for increased rigidity and performance. They are offered in standard or custom lengths, and are ideal for dynamic loads up to 273.6 kN and static loads up to 419 kN. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. All standard blocks come with a bottom seal and double lip end seals. Please contact us for more information.
- Size: 63mm Linear Guide Rail
- Dynamic Load: Up to 273.55 kN
- Static Load: Up to 419.04 kN
- Continuous Rail Lengths Up to 4000mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
- End-Seal Options: Standard or Reinforced
- Pre-Load: Clearance, Standard, or Light
.png)
.png)
