TSM15-180-12-12V-004A-LW4
| Frame Size (mm) | 15 |
|---|---|
| Bipolar Holding Torque (oz-in) | 0.555 |
| Bipolar RMS Current (A) | 0.04 |
| Bipolar RMS Voltage (V) | 12 |
| Bipolar Series Inductance Per Phase (mH) | 58 |
| Rotor Inertia (oz-in-sec2) | 0.0000141 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.02 |
| Length (in) | 0.47 |
Interested in large quantity discount?
Product Information

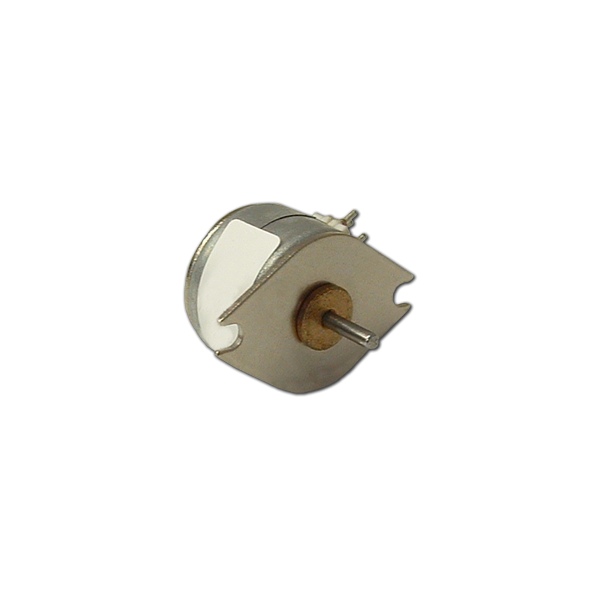

These miniature Permanent Magnet DC Stepper Motors measure 15mm in diameter and provide up to .555 ounce-inches of bipolar torque. These CE-Certified motors come standard as an 18° step angle, four-pin connection, and four flying lead configurations, offered in several current ratings. Customization is available for larger quantities.
- Frame Size: 15mm
- Holding Torque: 0.4-0.6 oz-in.
- Current: 0.04-0.5A
