TSM20-180-19-12V-024A-LW6
| Frame Size (mm) | 20 |
|---|---|
| Bipolar Holding Torque (oz-in) | 1.111 |
| Bipolar RMS Current (A) | 0.33 |
| Bipolar RMS Voltage (V) | 12 |
| Bipolar Series Inductance Per Phase (mH) | 25.5 |
| Rotor Inertia (oz-in-sec2) | 0.0000141 |
| # of Lead Wires | 6 |
| Weight (lbs) | 0.06 |
| Length (in) | 0.748029 |
Interested in large quantity discount?
Product Information

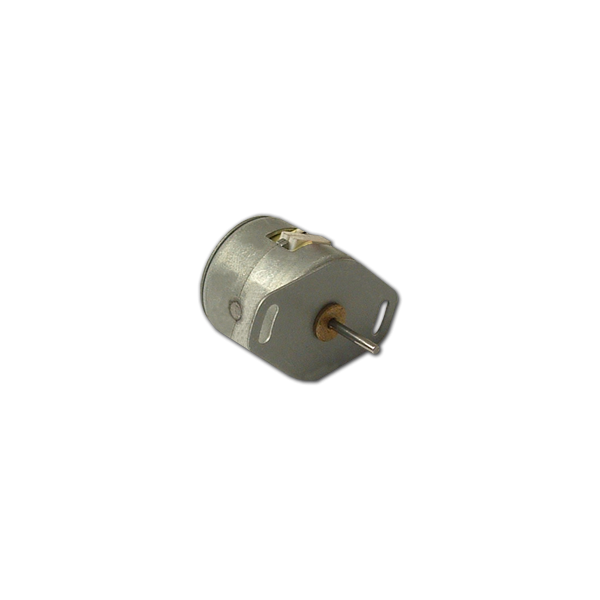

These miniature Permanent Magnet DC Stepper Motors measure 20mm in diameter and provide up to 0.833 ounce-inches of bipolar torque. These CE-Certified motors come standard as an 18° step angle, four-lead wire connection, offered in several current ratings. Customization is available for larger quantities.
- Permanent Magnet Stepper Motor
- Precise Motion at a Low Cost
- 60 g-cm of Torque (up to 0.833 oz-in bipolar torque)
- 20mm Diameter
- Customization Available for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
.png)
.png)
.png)
