TSM15-180-12-12V-007A-PINS

TSM15-180-12-12V-007A-PINS

TSM20-180-19-12V-024A-LW6

TSM20-180-19-12V-024A-LW6

TSM15-180-12-5V-050A-PINS

1pc Price:
$13.00
Quantity Discount
  • Buy 10 for $11.90 each and save 8%
  • Buy 25 for $11.55 each and save 11%
  • Buy 50 for $11.38 each and save 12%
  • Buy 100 for $7.47 each and save 43%
Inventory:
131
More Information
Frame Size (mm) 15
Bipolar Holding Torque (oz-in) 0.375
Bipolar RMS Current (A) 0.5
Bipolar RMS Voltage (V) 5
Bipolar Series Inductance Per Phase (mH) 2
Rotor Inertia (oz-in-sec2) 0.0000141
# of Lead Wires 4
Weight (lbs) 0.02
Length (in) 0.472
Interested in large quantity discount?

Product Information

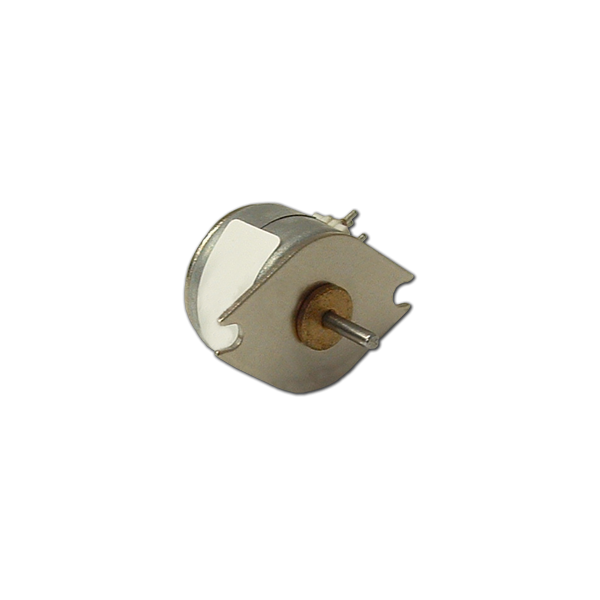

These miniature Permanent Magnet DC Stepper Motors measure 15mm in diameter and provide up to .555 ounce-inches of bipolar torque. These CE-Certified motors come standard as an 18° step angle, four-pin connection, and four flying lead configurations, offered in several current ratings. Customization is available for larger quantities.

  • Frame Size: 15mm
  • Holding Torque: 0.4-0.6 oz-in.
  • Current: 0.04-0.5A

Spec Sheet (PDF)

CE Certified

RoHS Compliant
