TSM35-150-22-5V-046A-LW4

TSM35-150-22-5V-046A-LW4

TSM42-075-22-12V-013A-LW4

TSM42-075-22-12V-013A-LW4

TSM42-075-17-5V-059A-LW4

1pc Price:
$25.00
Quantity Discount
  • Buy 10 for $23.80 each and save 5%
  • Buy 25 for $23.10 each and save 8%
  • Buy 50 for $22.77 each and save 9%
  • Buy 100 for $11.97 each and save 52%
Inventory:
89
More Information
Frame Size (mm) 42
Bipolar Holding Torque (oz-in) 6.944
Bipolar RMS Current (A) 0.59
Bipolar RMS Voltage (V) 5
Bipolar Series Inductance Per Phase (mH) 9.44
Rotor Inertia (oz-in-sec2) 0.00014
# of Lead Wires 4
Weight (lbs) 0.22
Length (in) 0.669289
Interested in large quantity discount?

Product Information

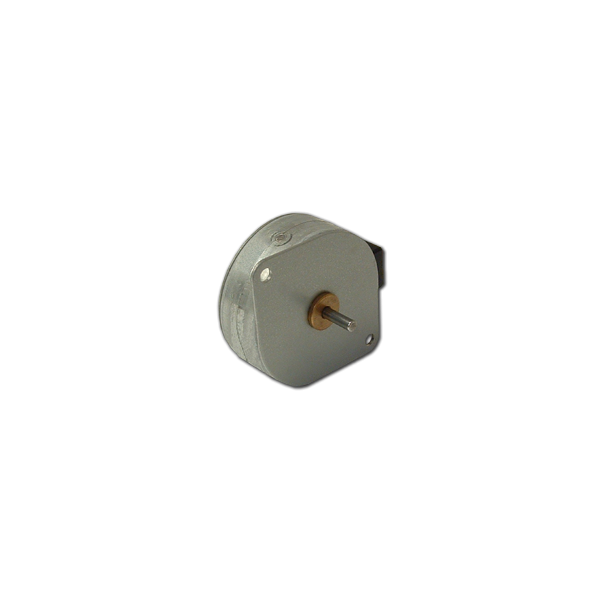

These miniature Permanent Magnet DC Stepper Motors measure 42mm in diameter and provide up to 6.9 ounce-inches of bipolar torque. These CE-Certified motors come standard with 7.5° step angles, and four-lead wire connection as standard, offered in several current ratings. Customization is available for larger quantities.

  • Permanent Magnet Stepper Motor
  • Precise Motion at a Low Cost
  • 6.944 oz-in Bipolar Torque
  • 42mm Diameter
  • Customization Available for
  • Winding Current
  • Shaft Options
  • Cables and Connectors
  • CE Certified and RoHS Compliant

Spec Sheet (PDF)

CE Certified

RoHS Compliant
