TSM42-075-22-12V-013A-LW4
| Frame Size (mm) | 42 |
|---|---|
| Bipolar Holding Torque (oz-in) | 7.638 |
| Bipolar RMS Current (A) | 0.13 |
| Bipolar RMS Voltage (V) | 12 |
| Bipolar Series Inductance Per Phase (mH) | 124.5 |
| Rotor Inertia (oz-in-sec2) | 0.00011 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.28 |
| Length (in) | 0.866139 |
Interested in large quantity discount?
Product Information

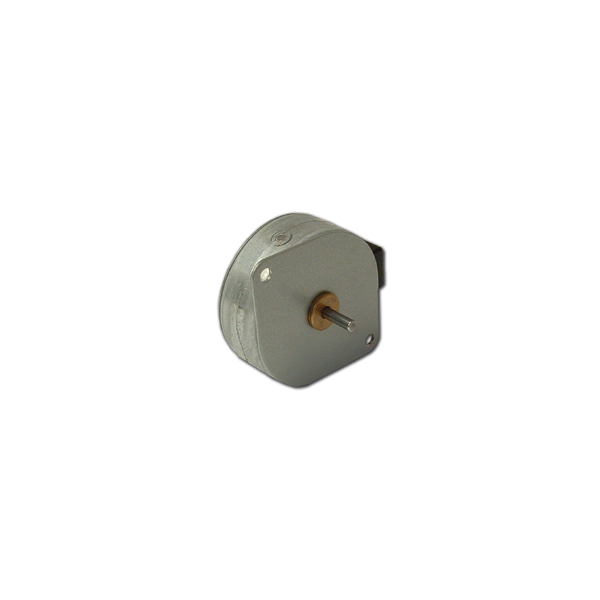

These miniature Permanent Magnet DC Stepper Motors measure 42mm in diameter and provide up to 6.9 ounce-inches of bipolar torque. These CE-Certified motors come standard with 7.5° step angles, and four-lead wire connection as standard, offered in several current ratings. Customization is available for larger quantities.
- Permanent Magnet Stepper Motor
- Precise Motion at a Low Cost
- 6.944 oz-in Bipolar Torque
- 42mm Diameter
- Customization Available for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
.png)
.png)
.png)
