TSM42-075-22-4V-060A-LW4

TSM42-075-22-4V-060A-LW4

TSM57-075-25-6V-063A-LW4

TSM57-075-25-6V-063A-LW4

TSM49-075-30-5V-090A-LW4

1pc Price:
$30.00
Quantity Discount
  • Buy 10 for $29.38 each and save 2%
  • Buy 25 for $28.51 each and save 5%
  • Buy 50 for $28.10 each and save 6%
  • Buy 100 for $26.52 each and save 12%
Inventory:
21
More Information
Frame Size (mm) 49
Bipolar Holding Torque (oz-in) 23.6
Bipolar RMS Current (A) 0.91
Bipolar RMS Voltage (V) 5
Bipolar Series Inductance Per Phase (mH) 9
Rotor Inertia (oz-in-sec2) 0.00021
# of Lead Wires 4
Weight (lbs) 0.5
Length (in) 1.18
Interested in large quantity discount?

Product Information

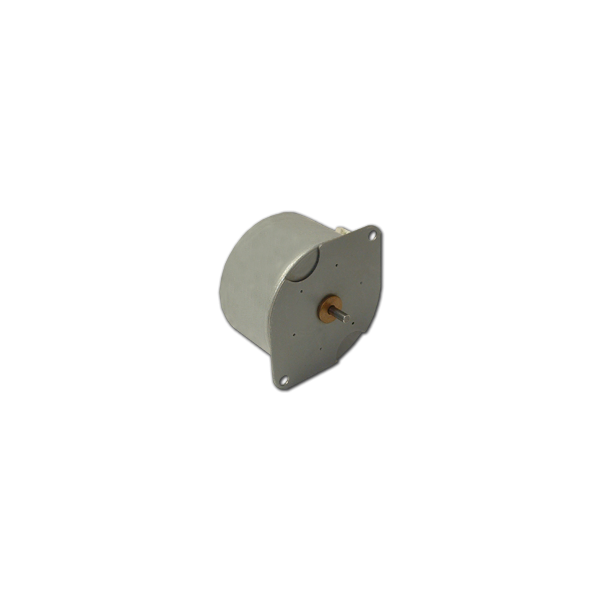

These miniature Permanent Magnet DC Stepper Motors measure 49mm in diameter and provide up to 23.6 ounce-inches of bipolar torque. These CE-Certified motors come standard with 7.5° step angles, and four-lead wire connection as standard, offered in several current ratings. Customization is available for larger quantities.

*Note: These motors are to be discontinued and are limited to stock on hand. Contact Anaheim Automation for more details.

  • Permanent Magnet Stepper Motor
  • Precise Motion at a Low Cost
  • Up to 23.6 oz-in of Bipolar Holding Torque
  • 49mm Diameter
  • Customization Available for:
    • Winding Current
    • Shaft Options
    • Cables and Connectors
  • CE Certified and RoHS Compliant

Spec Sheet (PDF)

CE Certified

RoHS Compliant
