TSM57-075-25-6V-063A-LW4
| Frame Size (mm) | 57 |
|---|---|
| Bipolar Holding Torque (oz-in) | 16.67 |
| Bipolar RMS Current (A) | 0.625 |
| Bipolar RMS Voltage (V) | 5.6 |
| Bipolar Series Inductance Per Phase (mH) | 21 |
| Rotor Inertia (oz-in-sec2) | 0.000176 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.64 |
| Length (in) | 0.984249 |
Interested in large quantity discount?
Product Information

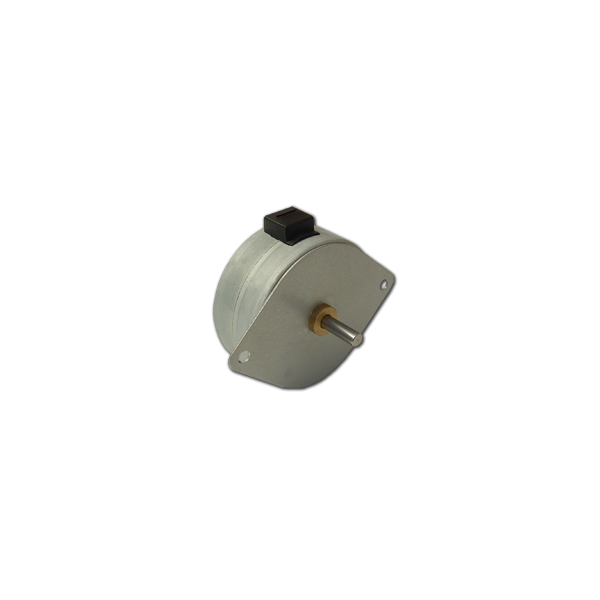

These miniature Permanent Magnet DC Stepper Motors measure 57mm in diameter and provide up to 16.665 ounce-inches of bipolar torque. These CE-Certified motors come standard with 7.5° step angles, and four-lead wire connection as standard, offered in several current ratings. Customization is available for larger quantities.
- Permanent Magnet Stepper Motor
- Precise Motion at a Low Cost
- Up to 16.67 oz-in of Bipolar Holding Torque
- 57mm Diameter
- Customization Available for:
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
