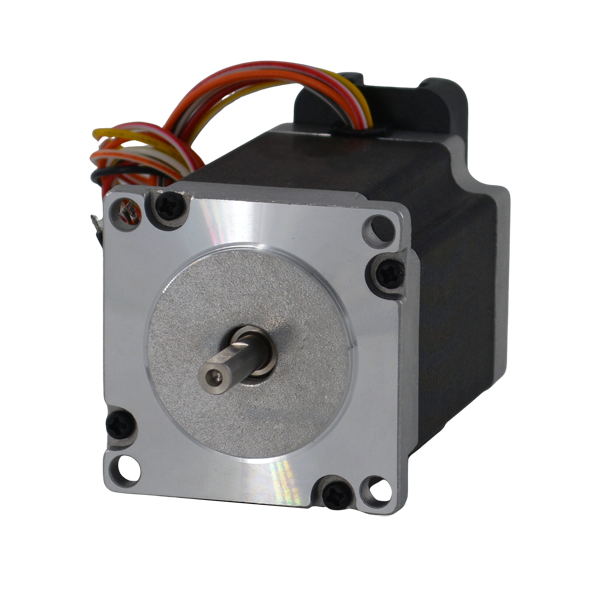

23Y206D-LW8-1000DI
| NEMA Size | 23 |
|---|---|
| Bipolar Torque (oz-in) | 262 |
| Bipolar Series RMS Current (A) | 2.1 |
| Bipolar Series RMS Voltage (V) | 4.2 |
| Bipolar Series Inductance Per Phase (mH) | 6.4 |
| Bipolar Series Resistance Per Phase (ohm) | 2 |
| Rotor Inertia (oz-in-sec2) | 0.0068 |
| # of Lead Wires | 8 |
| Shaft | Double |
| Weight (lbs) | 2.27 |
| Length (in) | 3.64 |
| Included Accessory | ENC-A5DI 1000 Line Encoder, Differential, Index |
Interested in large quantity discount?
Product Information
The 23Y Series High Torque Stepper Motors offer a great value without sacrificing quality. These motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf. The standard 8-lead motors can be connected in all possible configurations: series, unipolar, or parallel, to allow the maximum flexibility for your application. We can also customize the winding to perfectly match voltage, current, and maximum torque at operating speeds to meet your requirements.
See Accessories on this website for optional motor adders, such as encoders, cables and connectors. Gearbox adders are also available, and can be found under Gearboxes. For compatible drivers, consider popular models MBC15081, MBC25081TB, MBC05641, as possible companion drivers for this stepper motor series, or Driver Packs.
- NEMA 23 Frame Size
- 1.8° Step Angle
- IP50 Rated
- High Torque - Up to 380 oz-in Peak
- High Step Accuracy and Resolution
- Shaft Flat as Standard
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
Note 1: Dual Shaft Option Only
.png)
.png)
.png)
.png)
.png)
