23Y9106S-LW8

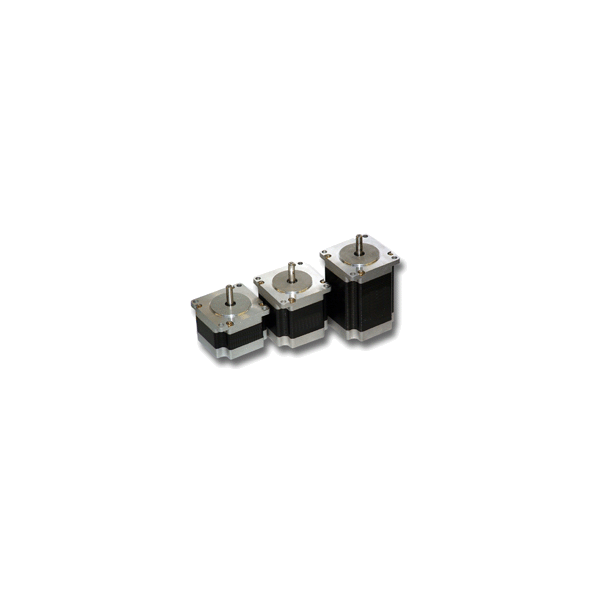

The 23Y9 Series High Torque Stepper Motors offer a great value without sacrificing quality. These motors have a 0.9° step angle making them higher precision than the typical 1.8° version. However, like the standard versions, motors are designed to offer the highest possible torque while minimizing vibration and audible noise. A broad line of motor windings and stack lengths are available off-the-shelf. We have 8-Lead motors that can be connected in all possible configurations: series, unipolar, or parallel, to allow the maximum flexibility for your application. We can also customize the winding to perfectly match voltage, current, and maximum torque at operating speeds to meet your requirements.

See Accessories on this website for optional motor adders, such as encoders, cables and connectors. Gearbox adders are also availabe, and can be found under Gearboxes. For compatible drivers for the 23Y9 series, see the MBC05641 MBC12101, or Driver Packs.

• NEMA 23 Frame Size
• 0.9° Step Angle
• IP50 Rated
• High Torque - Up to 270 oz-in
• High Step Accuracy and Resolution
• Low Vibration and Noise
• Shaft Flat as Standard
• Can be Customized for
• Winding Current
• Shaft Options
• Cables and Connectors
• CE Certified and RoHS Compliant

Note 1: Dual Shaft Option Only
