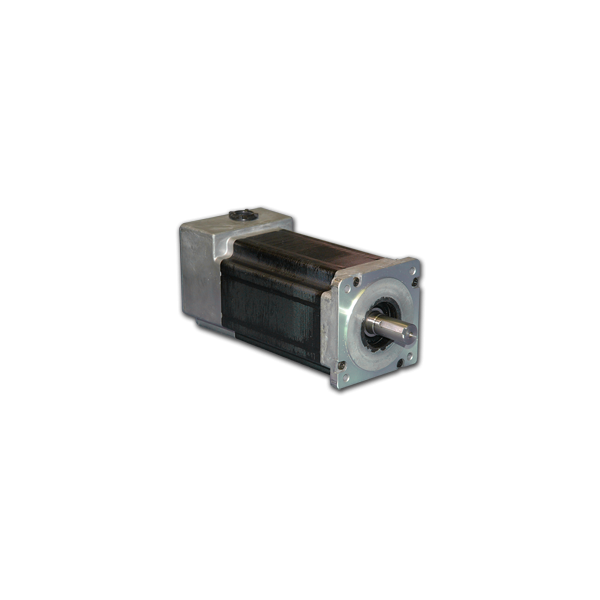

34N65112S-CB8

The 34N65 Series High Torque Stepper Motors use advanced magnetic technologies to provide significantly higher torque levels than what is available in standard round motors. They are also sealed around the shaft and conduit box making them splashproof and perfect for applications requiring an IP65 rated stepper, such as damp and humid environments. These motors are available in a variety of windings to meet any application specific requirement. The torque levels reached with this stepper motor line make them cost effective alternatives to servo motors in many applications. These motors can be specified in place of standard motors to reduce system size and cost, or increase system performace, without the need to go to larger sized motors or drivers.

See Accessories for optional motor adders such as cables and connectors. For gearbox options, see GBPH Series gearboxes. For compatible drivers, consider our popular MBC10641, MBC12101, and MLA10641, or Driver Packs.

• NEMA 34 Frame Size
• Sealed per IP65 for Splashproof
• 1.8° Natural Step Angle
• Holding Torque Ratings Up to 2180 oz.in.
• Substantial Increase In Torque Over Standard Motors
• High Acceleration and Increased Rotor Inertia
• 4 Stack Lengths
• Microstep Increments as Small as 0.0072°
• 3% Typical Step Accuracy - Non Cumulative
• Rugged Construction
• Higher Temperature Characteristics
• CE Certified and RoHS Compliant
