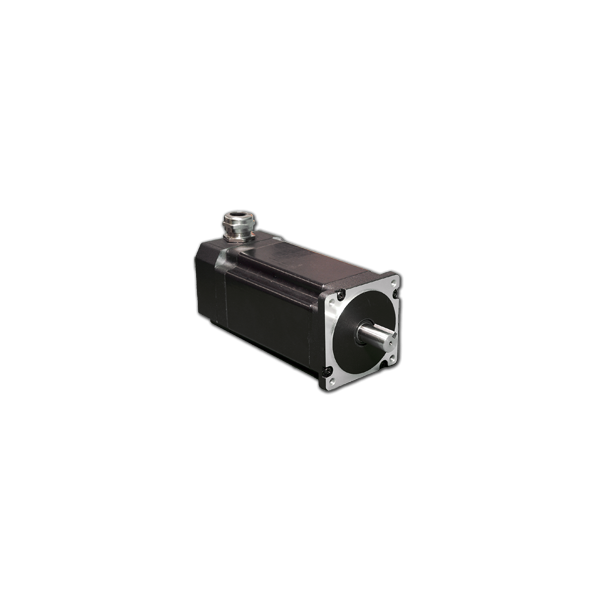

34Y65314S-CB8
| NEMA Size | 34 |
|---|---|
| Bipolar Torque (oz-in) | 1700 |
| Bipolar Series RMS Current (A) | 4.94 |
| Bipolar Series RMS Voltage (V) | 5.69 |
| Bipolar Series Inductance Per Phase (mH) | 14.2 |
| Bipolar Series Resistance Per Phase (ohm) | 1.15 |
| Rotor Inertia (oz-in-sec2) | 0.057 |
| # of Lead Wires | 8 |
| Shaft | Single |
| Weight (lbs) | 12 |
| Length (in) | 7.48 |
Interested in large quantity discount?
Product Information
The 34Y65 Series High Torque Stepper Motors are designed to withstand splashdown, humid or damp environments, and water sprayback conditions. The IP65 sealed properties ensure that moisture be kept out of the motors internal electronics. In addition, these motors provide the highest possible torque available in a sealed size 34 stepper. The 34Y65 series is an excellent choice for lab automation, biotech, and semiconductor automation equipment, just to name a few. Customized options are also available upon request.
See Accessories on this website for optional motor adders, such as cables, or connectors. For gearbox options, see GBPH series. For compatible drivers, consider MBC10641, MBC12101, MLA10641, and our Driver Packs.
- NEMA 34 Frame Size
- 1.8° Step Angle
- High Torque - Up to 1700 oz-in
- Sealed Per IP65 Standard for Splashproof
- High Step Accuracy and Resolution
- Low Vibration and Noise
- Keyway as Standard
- Can be Customized for
- Winding Current
- Shaft Options
- Cables and Connectors
- CE Certified and RoHS Compliant
.png)
.png)
.png)
